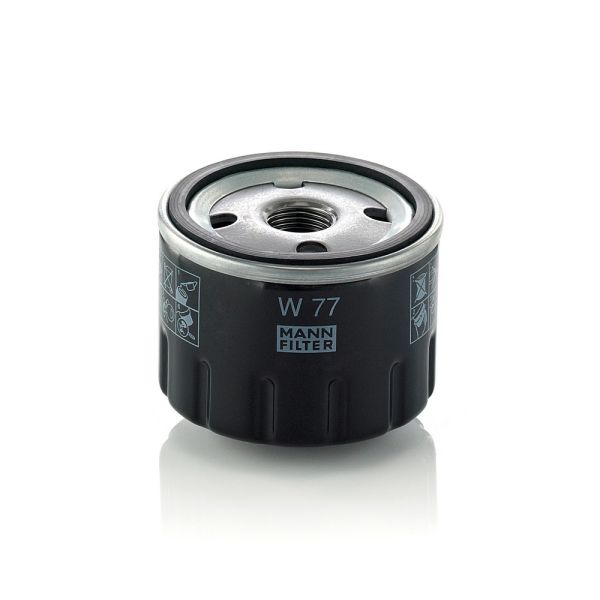

Mann W77 Oil Filter
Description
More and more performance, less and less consumption - in order to meet the high demands placed on modern engines, automobile manufacturers demand the absolute highest levels of performance from the engine components used. The oil circuit is of central importance here, as only clean engine oil can permanently ensure consistent engine performance. If the circulating oil is not permanently freed of impurities and combustion residues, protection from wear is no longer guaranteed. In the worst case, this may even damage the engine.
If you want to play it safe when choosing an oil filter, choose MANN-FILTER. They are designed for modern high-performance oils and can stand up to even the most demanding technical challenges. As the application areas of oil filters and the demands placed on them vary, MANN-FILTER oil filters are available in different designs.
Spin-On Oil Filter
By choosing MANN-FILTER spin-on oil filters, you get first-class quality and problem-free handling. The housing and filter element of the spin-on filter form a perfectly coordinated unit, which is fully replaced during maintenance.
MANN-FILTER's extensive technical expertise becomes particularly evident when you see the special features included with each filter type:
Return stop valve: ensures that the filter and oil channels do not empty when the engine is switched off and that oil is readily available when the engine is started.
Bypass valve: ensures that oil is available when the engine is cold started or when the service interval has been significantly exceeded and the oil filter is very dirty.
Release devices: enable quick and easy removal of the spin-on oil filter.
Cartridge Filter Elements
MANN-FILTER high performance filter elements have been specially developed for use in modern engines. Thanks to outstanding dirt holding capacity, high material resistance and a filter fineness perfectly matched to the relevant vehicle model, our filter inserts can cope with intensive use and deliver superb results.
The most modern filter media prolong service intervals and will continue to meet the technical requirements of high-performance engines in future.
Through the integration of additional functions or features, the cost effectiveness and range of functions of the filter elements can be increased further, e.g. by using a non-return membrane: the membrane retains the engine oil in the oil module as soon as the engine stops. Compared with a conventional return stop valve installed in the housing, the membrane solution offers an even faster and thus optimised oil supply when starting the engine.
In addition to the functional advantages, MANN-FILTER filter elements also impress through being environmentally friendly and conserving resources: as the filter housing does not require replacement for the life of the product, the only waste that arises during maintenance is the incinerable filter element, which is made of materials that are easy to dispose of.
Compatibility
MASERATI
QUATTROPORTE
1994 - 1998 Petrol Engine 2.8 Biturbo Sedan 209KW
GHIBLI
1992 - 1997 Petrol Engine 2.8 24V Biturbo Coupe 209KW
RENAULT
VIRAGE
1975 - 1976 Petrol Engine 1.3 (1337) 117_,133_ Wagon 44KW
16
1968 - 1980 Petrol Engine 1.6 TS (1151, 1154) 115_ Hatchback 61KW
1974 - 1980 Petrol Engine 1.6 TX (1156) 115_ Hatchback 68KW
1975 - 1980 Petrol Engine 1.6 TL 115_ Hatchback 40KW
12
1975 - 1980 Petrol Engine 1.3 (1170) 117_ Sedan 37KW
1969 - 1970 Petrol Engine 1.3 (1170) 117_ Sedan 40KW
1975 - 1976 Petrol Engine 1.3 TS (1177) 117_ Sedan 44KW
4
1962 - 1967 Petrol Engine 0.8 (1123) 112_ Hatchback 19KW
5
1972 - 1985 Petrol Engine 1.0 (1222, 1392) 122_ Hatchback 32KW
1979 - 1984 Petrol Engine 1.3 Automatik (1225, 1395) 122_ Hatchback 40KW
1976 - 1982 Petrol Engine 1.3 (2387) 238_ Hatchback Van 32KW
15
1972 - 1980 Petrol Engine 1.6 (1302) 130_ Coupe 66KW
17
1972 - 1980 Petrol Engine 1.6 Coupe 66KW
1974 - 1980 Petrol Engine 1.6 Gordini Coupe 79KW
Specifications
- Filter Type:
Spin-on Filter
- EU General Product Safety Regulation (GPSR):
IEC 60417-6183 spec. mech. knowl. required
- article number of the recommended special tool:
LS 7/2
- Height [mm]:
59
- Thread Size:
3/4-16 UNF
- Outer Diameter [mm]:
76
- Supplementary Article/Supplementary Info 2:
with one anti-return valve
- Bypass Valve Opening Pressure [bar]:
0,8
- Seal Ring Inner Diameter [mm]:
62
- Seal Ring Outer Diameter [mm]:
71
Cross Reference
-
A.L. FILTER
AL-200, AL-32
-
A.L. Group
AL-200, AL-32
-
ACDelco
X 13, X 4113 E, X 7
-
AGRIA
502 49
-
ALCO FILTER
SP-813, SP-898
-
AMC Filter
FOF-10206
-
AMMANN
51-50408400
-
ARMAFILT
O-77/62.1, O-77/62.4, O-93/57.0
-
AVS AUTOPARTS
Z118
-
BALDWIN
B132, B7165, B7222, B7410
-
BOMAG
05821159
-
BOSCH
0 451 001 001, 0 451 001 002, 0 451 001 002-850, 0 451 001 053, 0 451 001 053-850, 0 451 001 150, 0 451 103 018, 0 451 103 018-850, 0 451 103 041, 0 451 103 041-850, 0 451 103 133, 0 451 103 133-48N, 0 451 103 141, 0 451 203 003, 1 451 103 133, 9 450 732 006, 9 457 281 270, P3141
-
BRIGGS & STRATTON
492 932, 492 932S, 696 854, 842921
-
CASE IH
262034R91
-
CHAMP
LS 114, PH 2812A, PH 2814
-
CHAMPION
C 108, C 116/606, C 158, C158/606, COF100158S, COF102116S
-
CITROËN
MLS 000-169
-
CLEAN FILTERS
DO 248, DO 277, DO 878
-
COMLINE
EOF104
-
COOPERS
Z 107, Z 1371, Z 87
-
ASAS
SP 515, SP 612
-
CoopersFiaam
FT4739, FT4763, FT4837
-
CROSLAND FILTERS
311, 659
-
DELPHI
FX0013, FX0016, FX0133
-
DEMAG
132 346 74
-
DEUTZ
0.009.5008.0
-
DEUTZ-FAHR
0.009.5008.0
-
DIGÖMA
DGM 0324/1, DGM/O 324/1
-
DONALDSON
P550208
-
DONIT FILTER
43.10.11, 43.10.95
-
DR!VE+
DP1110.11.0255
-
ELOFIC
EXL-131, EXL-226
-
FARYMAN
541 027-2
-
FEBI BILSTEIN
180846
-
FIAT
4371581VF2, 71736169, 7683815
-
EUROREPAR
1682279280, E149214
-
FIL FILTER
ZP 32, ZP 569
-
FILMAR
SO8221
-
FLEETGUARD
LF16108, LF3826
-
FOMOCO
A700 X 6714 DA, A740 X 6714 CA
-
FORD
1498 017, 5001 156, 5006 951, 5009 421, 5012 037, 5013 149, A 700 X 63714 DA, A 700 X 6714 DA, A 740 X 6714 CA
-
FRAD
20.37.09/110
-
FRAM
PH2830, PH2874, PH3512, PH4806
-
GIF
GL 269
-
HAKO
72-146
-
HATZ
503 028 008 23
-
HENGST FILTER
H11W01, H12W03
-
GENERAL MOTORS
7984153, 7984550
-
HIFI FILTER
SO 10001, SO 131
-
JCB
4058/19106
-
JOHN DEERE
AM119567, AM125424, AM125424c, GY20577, LG4153, LG491056
-
KAWASAKI
49065-7007, 5102278X1
-
KNECHT
AW 10, AW 32
-
KOLBENSCHMIDT
149-OS, 50 013 149
-
KUBOTA
E7174-10550, E7188-32110
-
LUBERFINER
PH 2814, PH 3656, PH3656-1
-
LUCAS ELECTRICAL
3716, 6464
-
MAGNETI MARELLI
153071760116, 153071760679, 71760116, 71760119, 71760679
-
MAPCO
61045
-
MASERATI
470.04.09.00
-
MECAFILTER
ELH 4044, ELH 4073, ELH 4082, ELH 4090, ELHA 4044, ELHA 4073, ELHA 4082
-
MAHLE
OC 11, OC 24
-
MELROE
4130856, 4164153, 4164537
-
M-Filter
MH 352, MH 356
-
MISFAT
Z118, Z132, Z267
-
MONARK
30 738 018
-
MOTAQUIP
VFL 114, VFL 177
-
Motorcraft
EFL 049, EFL 098, EFL 114
-
MULLER FILTER
FO15
-
P.B.R.
BC-1055, BC-1099, BC-1111, BC-1327
-
PEUGEOT
1109 A1
-
PURFLUX
LS169, LS169B, LS401, LS505
-
PUROLATOR
FC 603, FC 81, L 10101, L 17603, L19215, PER 101
-
RENAULT
08 55 961 100, 77 00 348 108, 77 00 538 151, 77 00 542 285, 77 00 542 523, 77 00 542 526, 77 00 629 215, 77 01 033 837, 77 01 218 107, 77 01 348 018, 77 01 348 028, 77 01 348 108, 77 01 348 440
-
PZL Filters
PP-21
-
QUINTON HAZELL
QFL0262, QOF 5300
-
RENAULT TRUCKS
00 08 559 611, 08 55 961 100, 08 60 030 890
-
SCHAEFF
5.411.656.885
-
SCT - MANNOL
SM 833
-
SF FILTER
SP 4090, SP 5162
-
SOFIMA
S 0100 R, S 5100 R, S 9431 R
-
SogefiPro
FT3476, LS169B
-
SULLAIR
68430000
-
TECNECO FILTERS
OL 20, OL 277, OL 420, OL 590
-
TEHO
4048, 4072, OK 48, OK 72
-
TECNOCAR
R10, R15, R20
-
TJ FILTERS
FB 5300, FB 5405
-
VAICO
V46-0655
-
VALEO
586065
-
VALPADANA
3685690M91
-
VM
4.115.2001A
-
VOLVO
22057107
-
WEIDEMANN
024 150 1000
-
WIX FILTERS
57035, 57035MP, WL7064
-
UFI
23.118.00, 23.132.00, 23.267.00
-
UNICO FILTER
LI 759
-
UNIPART
GFE 210, GFE 211
-
WOODGATE
WGL9060
