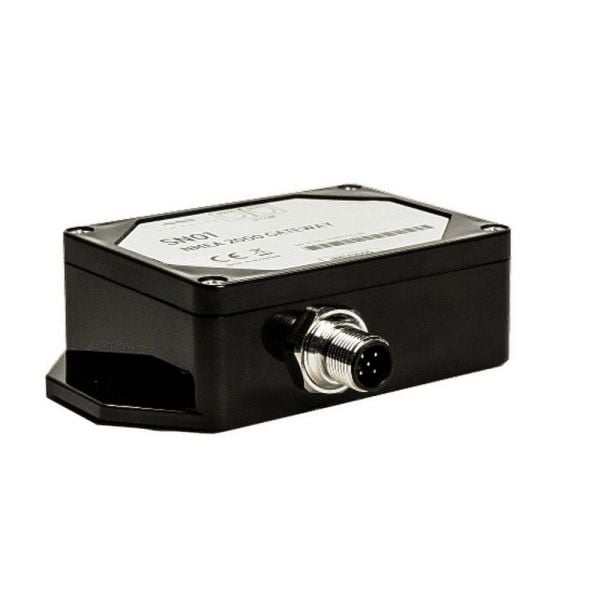

Simarine SN01 SiCOM NMEA 2000 gateway module allows your PICO to transmit and receive information from certain devices connected to an existing NMEA 2000 network. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.

Operating

• Power source voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 0.8 mA
• Dimensions 183x91x34 mm

Connectivity Up to

• NMEA 2000 backbone 1
• SICOM port 2

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications:

Below is a list of supported NMEA 2000 PGN’s. PICO allows transmitting or receiving of certain PGN’s according to the table below.
