Product parameters

• Channels: 2 Channel
• Built-in DSP: No
• RCA Input: 2x RCA
• High-Level Input: 0x | RCA only
• Power W RMS/ch Bridge: 1060
• Power W RMS/ch | 4O: 290
• Power W RMS/ch | 2O: 530
• Class: A/B
• Max Input Sensitivity (V): 8
• THD+N | %: 0.0009
• Operational Voltage:
• AMP - RCA Out: 0x | No Pre-out
• Product Depth | mm: 433
• Product Width | mm: 237
• Product Height | mm: 53

Features

• Low internal resistance due to solid gold-plated terminals for power cables up to 50 mm2/ gauge 1 and speaker cables up to 6 mm2/ gauge 6
• Separate terminal to connect a BRAX IPC directly to the switching transistors
• Signal inputs with high-end signal capacitors for a perfect and pure sound quality
• Each amplifier is available in black or silver finish either with a short or extended heatsink
• Especially developed transformers with high-efficient core materials guarantee a total output power of more than 1,000 Watts
• Solid heatsink made of special aluminium alloy for a perfect cooling of the transistors in the power supply and output stage
• 32 hand-selected high-end MOSFET transistors for brilliant sound
• The level controls for the input sensitivity adjustment are placed under the name plate, thus the amplifier has a clean and puristic design
• Adjustment range 1.0 V to 8.0 V
• Handcrafted in Germany

Technical data

• Output power RMS
• - @ 4 Ohms 2 x 290 Watts
• - @ 2 Ohms 2 x 530 Watts
• - @ 1 Ohm -
• - bridged @ 4 Ohms 1 x 1,060 Watts
• - bridged @ 2 Ohms -
• Amplifier technology: Class AB
• Inputs: 2 x Cinch
• 1 x Remote In
• Input sensitivity: RCA / Cinch 1.0 - 8.0 Volts
• Input impedance RCA / Cinch: 10 kOhms
• Input impedance highlevel: -
• Outputs: 2 x Speaker output
• Output voltage RCA / Cinch: -
• Signal converter for digital input: -
• Frequency response: 10 Hz - 80 kHz
• Bass boost: -
• Highpass: -
• Lowpass: -
• Bandpass: -
• Subsonic: -
• Phase: -
• Slope high- / lowpass: -
• Slope subsonic / lowpass: -
• Signal-to-noise ratio digital input: -
• Signal-to-noise ratio analog input: > 120 dB (A-weighted)
• Distortion (THD): < 0.0009 %
• Damping factor: > 1000
• Operating voltage: 9 - 16 Volts (max. 5 sec. down to 6 Volts)
• Idle current: 3.5 A
• Fuse: 4 x 30 A LP-Mini-fuse (APS)
• Additional features: Colour Protection System, BRAX Power Stabilizer connector, Start-Stop capability
• Dimensions (H x W x D): Heatsink "Short": 53 x 237.5 x 433 mm / 2.09 x 9.35 x 17.05"
  Heatsink "Long": 53 x 237.5 x 473mm / 2.09 x 9.35 x 18.62"
• Net weight: Heatsink "Short": 8.1 kg
  Heatsink "Long": 8.5 kg

Scope of delivery

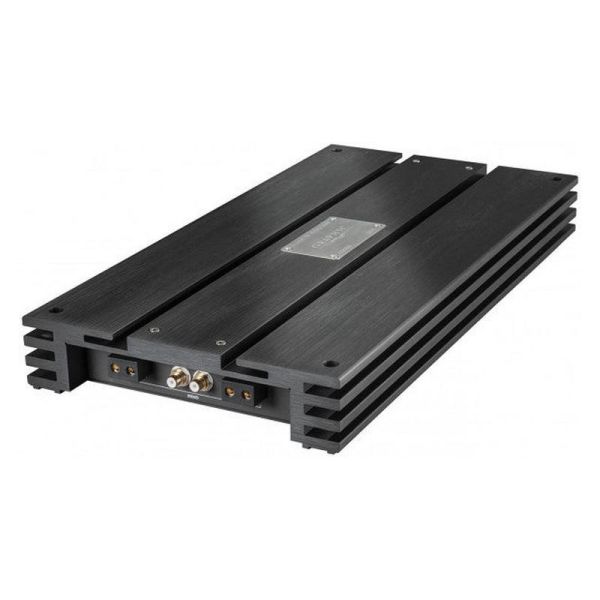

• 1 x High-End Amplifier BRAX GRAPHIC GX2000
• 1 x BRAX GRAPHIC T-shirt
• 3 x Allen key
• 1 x Instruction manual
