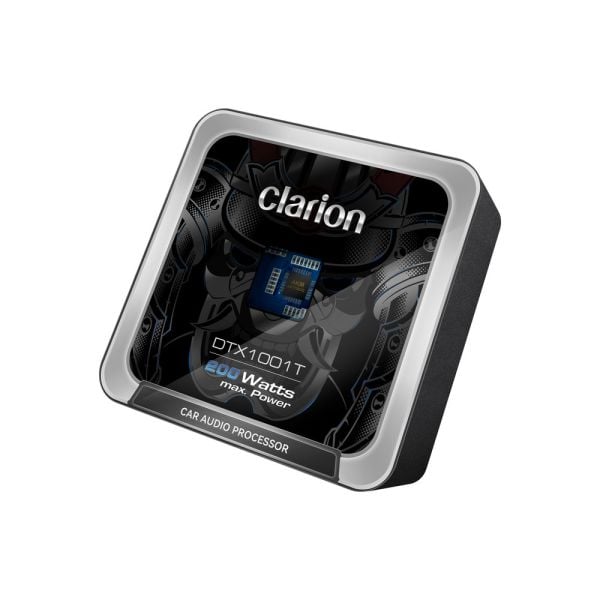

The Clarion DTX1001T is a compact 6-channel DSP amplifier designed for flexible in-vehicle audio upgrades. With four high-level inputs and a combination of high-level and RCA outputs, it's well suited for factory integration and aftermarket systems alike. Despite its small footprint, it delivers up to 50W peak per channel (CH1-4), backed by Clarions high-precision tuning tools.

This Class A/B amplifier features a 31-band EQ, advanced crossover filtering, and per-channel delay adjustment up to 20,000ms, allowing for detailed sound tailoring and time alignment. Built to perform reliably under varied temperature conditions and voltages, the DTX1001T is a solid choice for anyone looking to enhance clarity, staging, and tonal balance in a space-efficient design.

• Compact 6-channel DSP amplifier ideal for tight installation spaces
• Class A/B design delivers clean, detailed sound with low distortion (0.03% THD)
• 31-band EQ with wide tuning range and fine resolution (0.1dB steps)
• High/low-pass filters per channel with selectable slopes and crossover types
• Time alignment up to 20,000ms or 692cm per channel for custom staging
• Supports high-level inputs with signal sensing for easy factory integration
• 102dB dynamic range and 98dB signal-to-noise ratio for high-fidelity playback
• Robust operating range from -40 to +60C for dependable performance in all climates

• Inputs:
  • 4 CH high-level
• Outputs:
  • 4 CH high-level
  • 2 CH RCA
• Amplifier Type: Class A/B
• Peak Power:
  • CH1-4: 50W
• Output Signal Equalizer:
  • 31 Band EQ
  • Frequency Range 20Hz-20kHz (Resolution 1Hz)
  • Q value: 0.429 - 16.052
  • Gain: -20dB ~ +20dB (Resolution 0.1dB)
• Output Signal Frequency: Each channel with multi-order high-low pass independent filter.
  • Filter types: Link-Riley, Butterworth & Bessel
  • Filter crossover: 20Hz - 20kHz (Resolution 1Hz)
  • Filter slope: OFF, 6dB/Oct to 48dB/Oct
• Output Phase: 0 - 180
• Output Delay:
  • 0 - 20,000ms
  • 0 - 692cm
  • 0 - 272in
• Dynamic Range: >102dB
• S/N Ratio (RCA): >98dB
• T.H.D: 0.03%
• Frequency Response: 20Hz - 20kHz
• Input Impedance:
  • High Level: 4.7 Ohm
• Signal Input Range (Max):
  • High Level: 8-28Vpp
• Operating Temp: -40 to +60 degrees
• Working Voltage: DC 9V-17V
• Remote Input: High Level Sense, Acc Start
• Remote Output: +12V DC (100mA)
• Standby Power: 0.1W
• Weight:
• Dimensions: 145(L) x 145(W) x 36(H)mm
