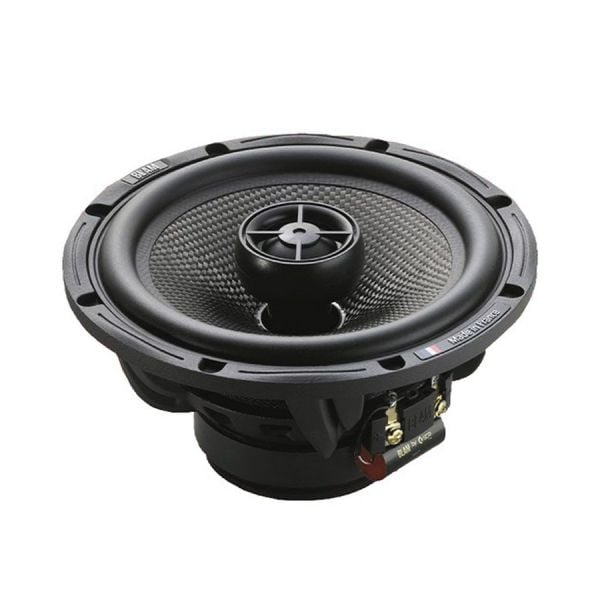

Blam Signature Series 6.5" 2-Way Coaxial Speakers S165.80C+
Blam Signature Series 6.5" 2-Way Coaxial Speakers S165.80C+
We'll notify you if it becomes available.
Not sure if it Fits? Click "Parts Checker"
Parts Checker
Free Shipping*
Blam Signature Series 6.5" 2-Way Coaxial Speakers S165.80C+
Description
COAXIAL KIT
Integrated 6dB/octave filter
Technical details
WS 6.80C HIGH SENSITIVITY WOOFER
Woofer 6.5'' (165 mm) -Tweeter 25 mm Max power 120 W/ Nominal 60 W Frequency response 60 Hz -30 kHz Sensitivity 94.3 dB- Impedance 2 Ohms Installation depth 76.5 mm Composition
Cast aluminum bowl -Ultra rigid carbon fiber membrane -IIR peripheral suspension -Long life "conex" spider -28 mm coil on fiberglass support -80 x 17 mm magnetic motor -Machined aluminum warhead -Gold plated terminal block .
Features
Component: Speaker Max power: 120 W Nominal power: 60 W Impedance: 2 Ohms Freq. Response: 60 Hz - 30 KHz Sensitivity: (2,83V/1m) 94.3 dB Magnet: Ferrite Magnet size: x h 80 x 17 mm 3.150"x 0.669" Total driver displacement: 0.3 l 0.011 cf Weight of one component: 1 kg Voice coil: 28 mm | 1.102" Voice coil height: 12 mm | 0472"
More Information
More Information
Pair or Single
Pair
Speaker Type
Coaxial
Speaker Setup
2-Way
Woofer Diameter (mm)
165mm
Woofer Diameter (Inch)
6.5 Inch
Mounting Diameter
142mm
Woofer Mounting Depth
76.5mm
Tweeter Diameter (mm)
25mm
Tweeter Diameter (Inch)
1 Inch
RMS Power
60W
Impedance
2 Ohm
Grilles Included
Not included
Sensitivity (dB)
94.3dB
Frequency Response
60Hz - 30kHz
Tweeter Style
Soft
Tweeter Material
Soft Dome
Tweeter Swivel
No
Tweeter Mount
Fixed
Tweeter Level Adjustment
No
Mulit-Fit Midrange
No
Crossover Type
Integrated
Bi-Amp Capable
No
