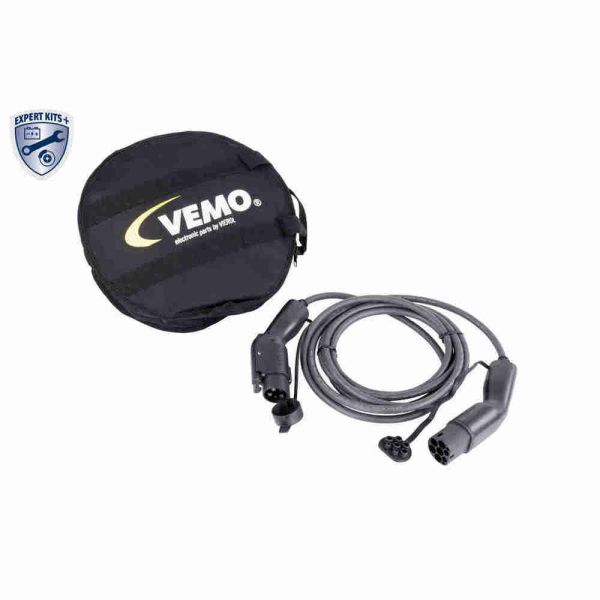

Specifications

• Power [kW]:

  7

• Phases:

  1

• Rated Voltage [V]:

  250

• Type of protection as per IEC 60529:

  IP54

• DIN/ISO:

  EN 50620 (Kabel)

• DIN/ISO:

  IEC 62196-1

• DIN/ISO:

  IEC 62196-2 TYPE1-2

• Vehicle Equipment:

  for vehicles with electric motor

• Vehicle Equipment:

  for vehicles with hybrid drive

• Plug Type:

  Charging plug type 1

• Plug Type:

  Charging coupler type 2

• Max. charging current [A]:

  32

• Cable Length [m]:

  5

• Temperature range from [°C]:

  -30

• Temperature range to [°C]:

  50

• Wire cross-section [mm²]:

  0,75 mm2×1

• Wire cross-section [mm²]:

  6 mm2×1 (-)

• Wire cross-section [mm²]:

  6 mm2×2 (+)

• Cable Diameter [mm]:

  13

• Number of contained variants:

  250

• Alignment deviation measuring range from [m/km]:

  1
