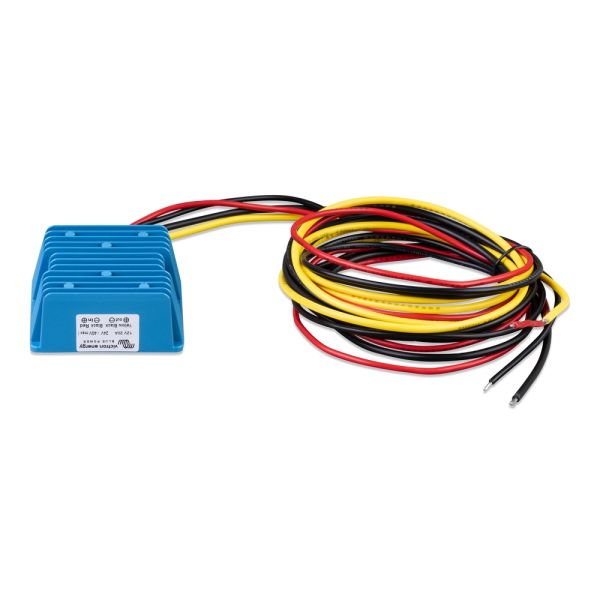

The Victron Orion 24/12-20A DC-DC converter is a robust, compact power solution for converting a 24V battery supply to a stable 12V output for accessories and auxiliary systems. Designed for mobile and marine applications, it delivers up to 20A continuous current and 240W output in a sealed, fanless aluminium housing with IP67 protection against dust and water ingress. The unit is non isolated which allows a common negative connection between input and output and is engineered for reliable performance in harsh environments.

• Input voltage: 24V nominal, suitable for 24V systems, operating range typically 18 to 35V
• Output: 12V at 20A continuous, 240W maximum
• Protection: overload protection, short circuit protection, over temperature shutdown and reverse polarity protection
• Construction: rugged, fanless aluminium case with IP67 ingress protection
• Performance: high efficiency DC to DC conversion for reduced heat generation and improved battery management
• Installation: compact footprint for flexible mounting in vehicles, caravans, boats and off grid systems

Ideal for powering fridges, lighting, comms and other 12V loads from a 24V source. Confirm compatibility with your vehicle or system using the Parts Checker before purchase and consult installation instructions or a qualified fitter for safe integration.
