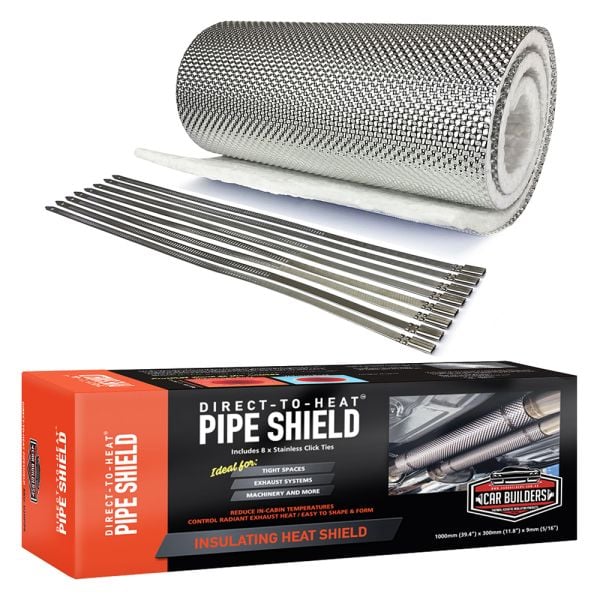

Car Builders Direct-To-Heat Pipe Shields are engineered to mount directly onto hot surfaces, providing a reliable, space-saving heat solution. Each shield features a robust dimpled aluminium face that encapsulates a woven ceramic insulation core—flameproof and rated to withstand temperatures up to 1000°C (1832°F).

At just 8mm thick, these shields are lightweight, compact, and flexible, allowing for easy installation and tight contours around exhaust components, downpipes, or turbo housings.

Sheet size: 1000mm x 300mm

How do i install?

1. Measure the area to be covered by laying the ceramic blanket over the pipe.
2. Trim the ceramic insulation to the required size using scissors.
3. Place the ceramic insulation on the provided embossed aluminium sheet.
4. Encapsulate the insulation by folding the aluminium sheet over it, creating a 180-degree fold.
5. Apply the encapsulated insulation to the pipe with the insulation side facing down.
6. Secure the insulation in place using the provided Click Ties or radiator hose clamps.


Ideal for:

Headers, Manifolds, Downpipes, Catalytic Converters, Exhaust systems, DPF’s

Includes:

• 8 x Click Ties (7mm x 400mm)

Car Builders Click Ties are the adjustable stainless clamps you have been looking for. Simple to apply and removable, no more
frustration with speciality tools which kind of work. These are straight forward and get the job done.
