The Toyota GR Corolla has been highly anticipated since Toyota set the benchmark with the popular Yaris GR. Featuring an impressive 1.6L 3-cylinder turbocharged engine, a rally-inspired AWD system, and a compact chassis, the Corolla GR has attracted global attention, becoming a familiar sight on roads and race tracks worldwide. Following the success of the direct-fit oil cooler kits for the Ford RS, Toyota GR, and Honda Type R, HEL Performance knew HEL Performance had to bring the Corolla GR into the workshop for development. the goal was simple; to design and manufacture user-friendly, easy-to-install kits that require either no, or very little modifications.

To ensure perfect fitment, HEL Performance 3D laser scanned the engine bay, engine, and its ancillaries. After determining the peak oil cooler position, a custom mounting bracket was designed using the threaded ports on the factory bumper support. HEL Performance 3D-printed a prototype for fitment testing before manufacturing the final aluminum version. All HEL direct-fitting oil cooler brackets are laser cut, precision-folded, and powder-coated in black, resulting in a stealthy finish. Positioned directly behind the top grill, the Setrab oil cooler benefits from direct airflow, delivering optimal cooling efficiency.

Every HEL oil cooler kit features a high-quality, reliable 25 row oil cooler manufactured by Setrab in Sweden. HEL Performance have been using Setrab coolers for 10+ years, and have never had any issues with the performance or quality. Having an oil cooler fail or even burst is not something you want to experience, especially in demanding conditions and that is something HEL Performance have never seen with Setrab's build quality. In the past, we've even had reports of front-end collisions and the Setrab oil cooler was the only component that still worked!

Delivered with pre-assembled braided hoses and aluminium fittings, the comprehensive kit has everything required for a straightforward installation. Using AN10 high-flow performance hose to deliver and return oil from the external oil cooler, this kit also includes one of HEL's popular oil filter sandwich plates, equipped with a built-in thermostat. The thermostat ensures that your engine oil flows to the external oil cooler only when the oil reaches the desired temperature (92°C / 198°F).

Around 10% of the engine oil circulates through the oil cooler at any given time, this ensures a continuous flow that prevents air pockets and safeguards against thermal shock to the system. The surplus oil is then channelled back to the engine through the internal bypass system, promoting faster warm-up, providing added safeguarding in cold weather conditions, and eliminates the risk of overcooling.

Included with every kit is an easy-to-read installation manual. If you get stuck, the technical support team is always happy to answer any questions you may have.

Specifications

• Component Type: Vehicle Specific Oil Cooler Kit
• Compatibility (Vehicle Manu. & Model): Toyota GR Corolla (2022-)
• Compatibility (Engine): 1.6L Turbo G16E-GTS
• Thermostat Activation Temperature: 92°C / 198°F
• Oil Cooler: Setrab ProLine 1 Series 25 Row
• Hose & Fitting Size: AN10 / -10 AN
• Hose Type: Braided AN Rubber (Black)
• Brand: HEL Performance

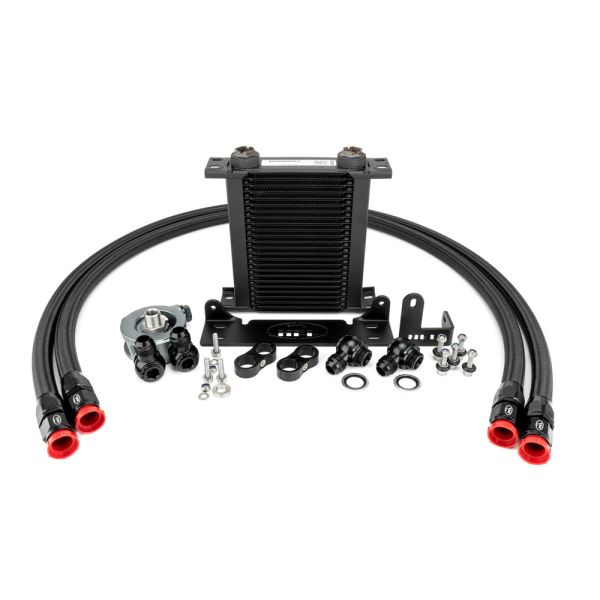

What's Included

• 1x HEL Thermostatic Oil Filter Sandwich Plate
• 1x HEL Oil Filter Sandwich Plate Spacer
• 1x Setrab Oil Cooler (ProLine 1 Series 25 Row)
• 1x HEL Vehicle Specific Oil Cooler Mounting Bracket Kit
• 1x HEL AN10 Braided Hose Kit w/ Fittings (Pre-Assembled)
• 1x Stainless Steel Oil Cooler Mounting Hardware Kit
• 1x Installation Manual

Please Note

Before operating the vehicle, it is the installer's responsibility to ensure that all components are fully tightened and secure. Failure to do so could result in oil loss or, in the worst case, engine failure.
