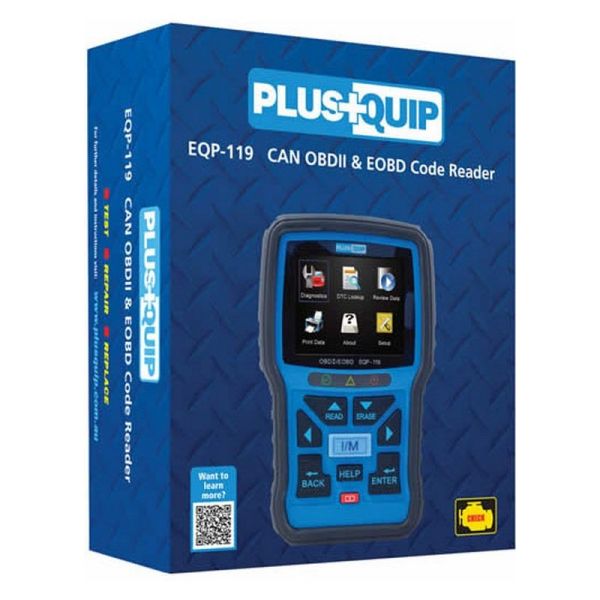

This compact, multi-function tool is one of the easiest and quickest solutions to pinpoint Onboard Diagnostic System (OBD) faults and can be used on local and imported vehicles that support the OBDII vehicle communication system.

Some of the features include:

• Works with all OBDII/EOBD compliant cars, light-duty trucks, SUV’s, minivans and hybrids sold worldwide.
• Quickly and efficiently troubleshoot OBD2/EOBD problems on today’s vehicles
• Access Diagnostic Trouble Codes (DTC’s) and clear stored codes if required
• Turns off Check Engine Light (MIL) and resets monitors
• Hot keys for I/M readiness tests, and reading or clearing (DTC’s)
• Quick access to emissions readiness status, DTC information and erase function
• Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status. Can also help catch intermittent problems or confirm repairs during a drive cycle
• Supports multiple code requests: Generic, manufacturer specific, pending and permanent codes
• Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp at the time the Malfunction Indicator Lamp (MIL) was illuminated
• Reads, records, graphs and playbacks live sensor data
• Reads live O2 sensor/on-board monitor test data
• Retrieves vehicle information (VIN, CID and CVN)
• Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data
• Thousands of code trouble-shooters to help you determine your engine problems faster and easier
• Multilingual menu options and code definitions
• Unique one-click update and automatic update reminder let you stay current with the latest technology
• FREE software and firmware updates with included USB cable
• Large easy-to-read 2.8″ TFT colour screen
• Prints data through computer
• Limited one (1) year warranty
• Suitable for the entry-level pro and savvy DIY user

Specifications:

• Display: 2.8” TFT Colour screen
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Power: 8 to 18 V provided via vehicle
• Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
