Projecta 3 Stage Automatic 12/24V 20A Solar Charge Controller SC320

Projecta 3 Stage Automatic 12/24V 20A Solar Charge Controller SC320

Part No.

SC320

Projecta 3 Stage Automatic 12/24V 20A Solar Charge Controller SC320

Special Price $206.90 Regular Price $248.99

You Save 17% off RRP

Not sure if it Fits? Click "Parts Checker"

Parts Checker

Buy Now, Pay Later

4 payments of $51.73

Skip to the end of the images gallery

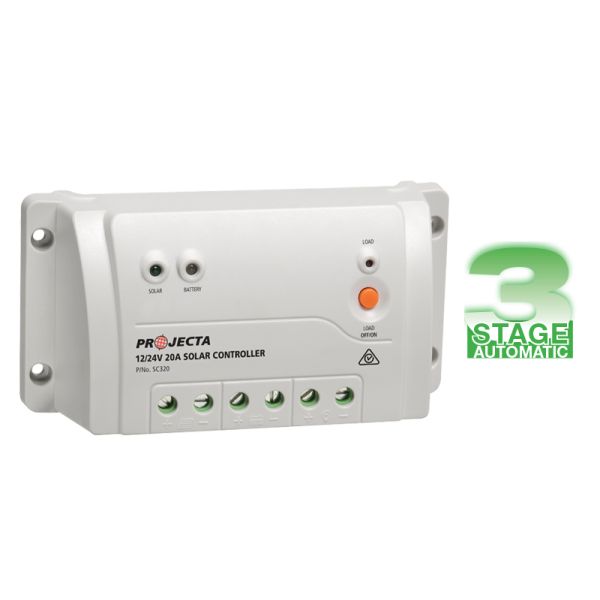

main product photo

Skip to the beginning of the images gallery

Add to Wish List

Projecta 3 Stage Automatic 12/24V 20A Solar Charge Controller SC320

Projecta 3 Stage Automatic 12/24V 20A Solar Charge Controller SC320

Special Price $206.90 Regular Price $248.99

You Save 17% off RRP

Description

3 Stage Automatic 12/24V 20A Solar Charge Controller

Ideally suited to solar panels producing up to 20A, the SC320 is a highly advanced controller that delivers a comprehensive 3 stage charge. Ideal for caravans where multiple solar panels are used for remote charging.

SPECIFICATIONS

PRODUCT DETAILS

PART NO.

SC320

INPUT

12V or 24V solar panel

MAX INPUT

50V DC, 20A

MAX LOAD

20A

LOAD SWITCHING

Negative

BATTERY

12V or 24V

CHARGE CONTROL

3 stage charging

Bulk:
Absorption:
Float:

12V
14.4V
14.4V
13.8V

24V
28.8V
28.8V
27.6V

Negative Switching

LVD DISCONNECT

12V: 11.1V, 24V: 22.2V

LVD RECONNECT

12V: 12.6V, 24V: 25.2V

STANDBY CURRENT

6mA

APPROVALS

EMC

L.E.D CHARGE INDICATION

SOLAR

GREEN LIGHT

Normal

GREEN LIGHT SLOW FLASH

Over voltage

BATTERY

GREEN LIGHT SLOW FLASH

Full (float/absorption)

GREEN LIGHT

Normal

YELLOW LIGHT ON

Low

RED LIGHT ON

Flat-disconnected

LOAD

RED LIGHT ON

Normal

RED LIGHT SLOW FLASH

Overload

RED LIGHT FAST FLASH

Short circuit
