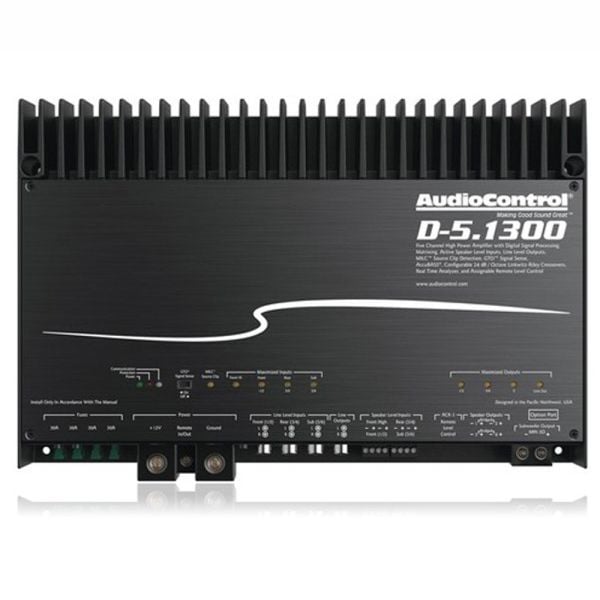

5 Channel DSP Amplifier

Paired with award winning amplifier technology and powerful Matrix DSP, the D-5.1300 is a single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.

Total Integration Solution

The AudioControl D5.1300 Amplifier offers two great features for unlocking amazing sound in your vehicle. Serious power and extensive control. The amplifier can be setup as either 5 or 3 channel configurations to suit your needs.

Designed for us with many different combinations including

Active 2 Way Component Speakers + Subwoofer

Front and Rear Speakers with Subwoofer

Offering a full Digital Sound Processing (DSP) suite, the D-5.1300 lets you tune and dial in your system to how you always wanted it.

Big On Output

With a long heritage of home audio, AudioControl's 5 Channel DSP Amplifier offers some serious grunt matched with amazing sound quality.

Thanks to its efficient Class-D topology, the D-5.1300 offers full 20Hz to 20kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.

With up to 200 Watts RMS per channel and over 400w Bridged for speakers, PLUS a 5th channel offering upto 500 Watts RMS for a subwoofer this packs a serious punch with its 5 channels of output.

We've even included an assignable stereo RCA output for additional amplifier connection. Great for external mono block amplifiers.

The Input You Need

Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.

With 8 Channels of high level input accepting up-to 400 watts per channel using the same technology found in our DSP range of interfaces, the D-5.1300 makes easy work of taking all of these signals and giving you the smooth full range output you want.

Using an aftermarket headunit? We've got you covered with 6 channels of low level RCA input for direct control of each channel.

Get That BASS!

Using patented technology, each AudioControl D-5.1300 includes the AccuBASS processor system as part of the DSP package.

Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.

Smart DSP Software

Connect your laptop to the D-5.1300 using AudioControl's DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.

Using the same technology you would find in our AudioControl standalone DSP range, Route any input to any output, adjust gain, delay and polarity then precisely tune the D-5.1300.

Features Per Channel

• 30 band EQ
• Adjustable 12 or 24 dB/octave Linkwitz-Riley High-pass / low-pass / band-pass crossover
• AccuBass Bass Restoration
• Adjustable Time Delay
• Adjustable Signal Delay
• Channel Summing
• Line Driver
• Auto EQ
• Adjustable Input Level
• Real Time Analyzer on Input Channel as well as Output Channel.

For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.

With a clear GUI and intuitive workflow, AudioControl's DM Smart DSP app will take the guesswork out of tuning your system to your exact specifications.

Control From The Palm Of Your Hand

With support for Bluetooth Audio (aptX) and Bluetooth Data, the optional AC-BT24 can be installed into the option port of the D-5.1300 to allow complete control of your Digital Sound Processor's DM Suite from your iOS or Android device.

You can also stream your favourite music in high fidelity aptX via Bluetooth audio with direct volume control on your phone or tablet.

(AC-BT24 Available Separately)

Plug & Play Your Audio Away

With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.

Available for a select wide range of makes and models including:

• Audi
• BMW
• Citroen
• Ford
• Holden
• Honda
• Hyundai
• GM
• KIA
• Mazda
• Skoda
• Subaru
