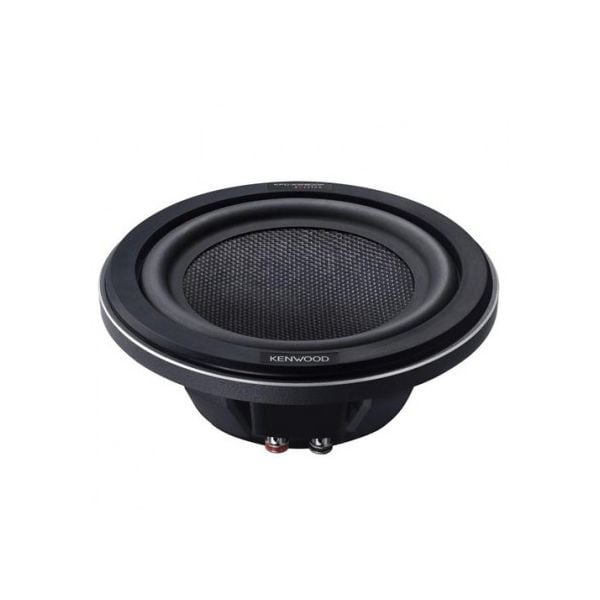

Kenwood KFC-XW800F 600W 8" Car Subwoofer
Part No.
KFC-XW800F
$209.00
Not sure if it Fits? Click "Parts Checker"
Buy Now, Pay Later
4 payments of $52.25
Description
Super slim, super powerful, the KFC-XW800F is a 8-inch subwoofer that handles a 600 watts of power with only a 2-3/4 inch mounting depth. The KFC-XW800F also has a single voice coil at 4 ohm, a cast aluminum basket, and a removable front trim ring. This sub (as well as the KFC-XW1000F/KFC-XW1200F) will fit nicely in a small sealed enclosure or small prefab enclosure.
MAX POWER 600W
8" Woofer with 4-ohm voice coil
Smooth Linear Rubber Surround
Super Linear Spider
Dual Magnet Drive
Removable Gasket
Screw Lock Terminals
Frequency Response: 40-500 Hz
Sensitivity: 78 dB
Mounting depth: 2-3/4"
| Size | 200mm | 8in | ||
| Diaphragm | Carbon-Glass Fiber Honeycom Cone |
|||
| Surround | Rubber | |||
| Basket | Aluminum Die-casting | |||
| Magnet | Ferrite | φ110*t17 | ||
| Width (w/o_Gr) | 226.0mm | 8-7/8in | ||
| Height (w/o_Gr) | 226.0mm | 8-7/8in | ||
| Cutout Diameter | 186.0mm | 7-5/16in | ||
| Depth (w/o_Gr) | 90.5mm | 3-9/16in | ||
| Mounting Depth | 70.0mm | 2-3/4in | ||
| Woofer without Grille (pc.) | 2,900g | 6.4lbs | ||
| Weight of Magnet (Woofer) | 545g | 19.2oz | ||
| NOMINAL IMPEDANCE | 4 Ohms | |||
| Maximum Peak Power | 600W | |||
| Maximum RMS Power | 150W | |||
| Sensitivity(CEA) | 78db / W at 1m | |||
| Frequency Response(CEA) | 40Hz- | 500Hz | ||
| Accessory | Screw sets φ5*30 *8 Cushion *1 Badge sets *1 |
|||
