• Fits Holden 304 V8 Engines. Will not suit early Holden 308 cylinder heads. This is designed for late model Holden VN Engine Models EFI models only. Use A6010-4000 for NON-EFI applications.

Manifold Specifications

• Square bore carburettor pad
• Overall height (Carb pad to bottom of manifold) is 150mm (Ensure to Check Bonnet Clearance)
• Port Size: 1.20" x 2.05"
• Intake manifold gasket, 5REGIM-308VN.
• 5/16-18" carburettor studs (x4)
• 5/16-18" Mounting Hole for Throttle Bracket (x1)
• 3/8" NPT ports (x2) with 1 steel port plug included
• 1/2" NPT ports (x3) with 2 steel port plugs included

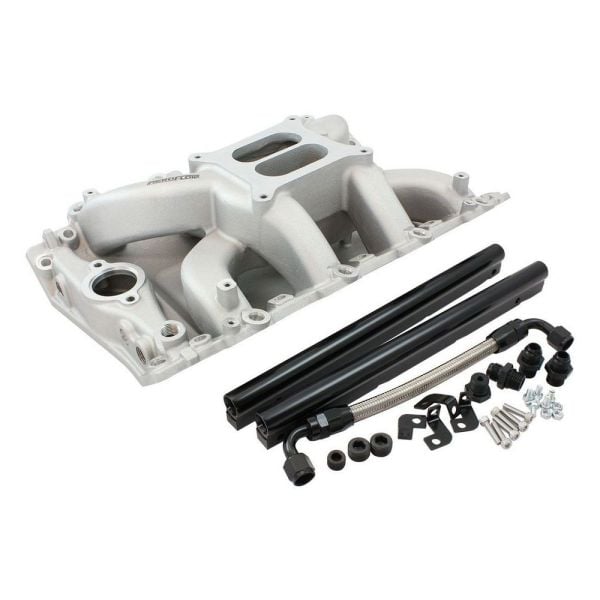

AF6999-4003 includes

• 2 x Fuel Rails (-8ORB)
• -8AN cross over 100 series braided line with two 90 degree non full flow taper fittings
• 3 x -8an to -8ORB fittings
• 1 x -8ORB hex port plug
• 6 x mounting brackets
• 6 x M6 socket cap screws (25mm UHL)
• 6 x M6 hex screws (10mm UHL)
• 4 x M6 nuts
