This kit includes an attractive black anodized Tee Block Adapter which is supplied with three ¼” NPT ports and two openings for simple mounting, two ¼” NPT x 3/8” black anodized push on barbed fittings and 2 x hose clamps. The Tee Block Adapter can be simply installed to your transmission’s oil outlet line. The push on barbed fittings can be installed in either an in-line or ‘T’ configuration.

For Transmission Temperature Gauges Use this kit to install mechanical and electric transmission temperature gauges in the HOT transmission cooler hardline. Perfect for applications where a temperature port or pan installation is not appropriate.

Sensor Fitment - Required Parts

• Davies, Craig Digital Thermatic Switch #0445
  • No additional parts required
• Davies, Craig Mechanical Thermatic Switch #0401
  • Requires Part #0418 – 1/4" NPT Compression Fitting.
• Davies, Craig Digital Thermal Switches #0444 and #0500
  • Requires Part #0465 – 1/4" NPT Thermal Sensor Upgrade Kit.
• Suitable for use with 1/8” NPT thermal sensors (#0468).
  • Requires a 1/4” NPT to 1/8” NPT thread reducer fitting. (Not available from Davies, Craig)

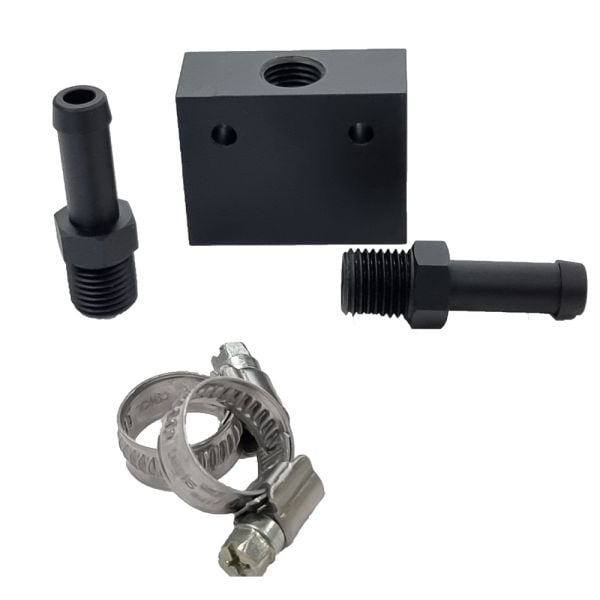

Kit Contents

• 1/4” NPT Tee Block Adapter x 1
• 1/4” NPT to 3/8” Push on barb fitting x 2
• Hose Clamps x 2
