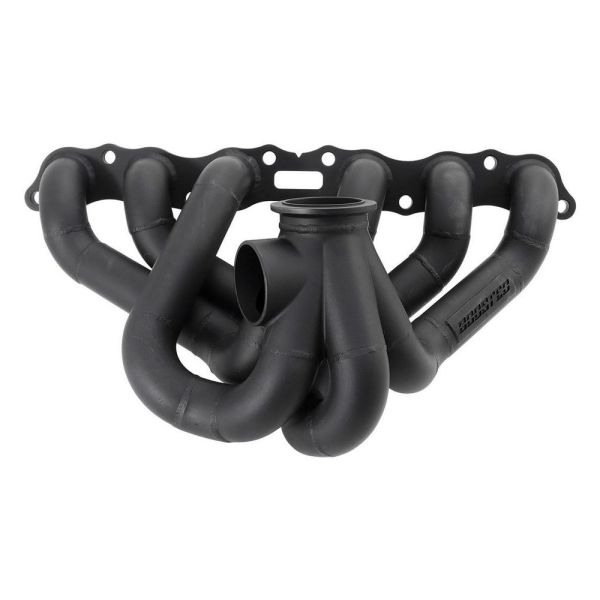

Model - Toyota 2JZGE (non-turbo) turbosteampipe manifold.

Turbo Collector Flange - V-Band single entry (AF8080-1016).

Mounting Location - High Mount.

Turbocharger Style - Boosted 4849 to Boosted 6862 in V-Band flange. (GT30/GT35)

Wastegate Flange - Single 50mm external wastegate.

Aeroflow Performance steampipe turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into the merge collector which are perfectly matched to the Boosted range of turbochargers. the merge collector design allows all pipes to enter at the exact same angle, and merge togetherat a point in the middle, pointing straight into the turbine. No pipes enter acrosseach other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from the turbo manifold.

Aeroflowturbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent steam pipe with CNC Machined header and turbo flanges. Each flange is milled after welding to ensureprecise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, andthe position the wastegate sits in.

Each manifold is finished with a black enamel coated finish that withstands high temperature exhaust that has proven to withstand excessive heat. Aeroflow's do recommend to have this manifold either wrapped with exhaust wrap or ceramic coatedto ensure protection for external accessories and reduce under bonnet temperatures.

The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
