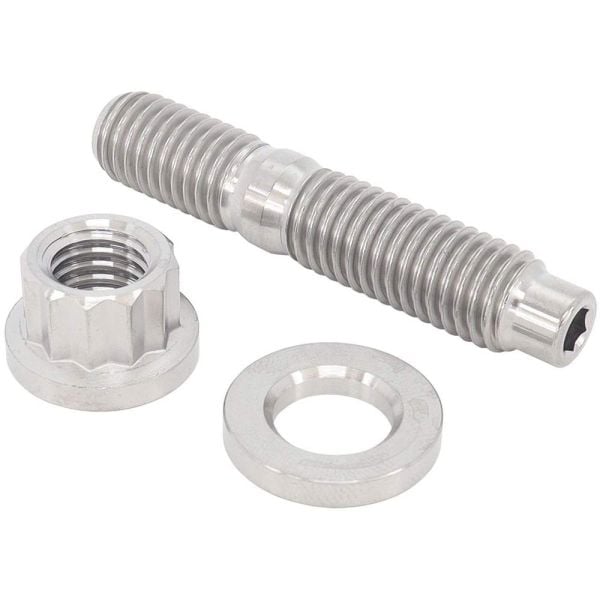

Aeroflow Performance titanium studs are 45% lighter and stronger then your regular steel stud and nut combo you find at your local bolt shop. The high strength and super lightweight Ti 6Al-4V grade (Grade 5) studs are the perfect replacement for turbo manifolds, exhaust headers or intakes. The use of factory OEM bolts and studs they can result in stripped or broken bolts and inadequate clamping force, resulting in leaks. Aeroflow Performance titanium stud and nut combo incorporates a hex key tip that allows them to be easily installed using an Allen wrench, Titanium 12-point nuts and washers are included.
Sold in one kit of 1 stud, 1 nut and 1 washer.

Stud

• Stud Size Thread: M10x1.50
• Total Length: 45mm
• Allen Key: 3mm
• Short Thread Length: 14.5mm
• Long Thread Length : 20.5mm

Washer Size

• Outside Diameter: 18.5mm
• Inside Diameter: 10.3mm
• Thickness: 3mm

Nut Size

• Thread: M10x1.50
• Height: 10mm
• Flange Diameter: 20mm
• Socket Size: 14mm
