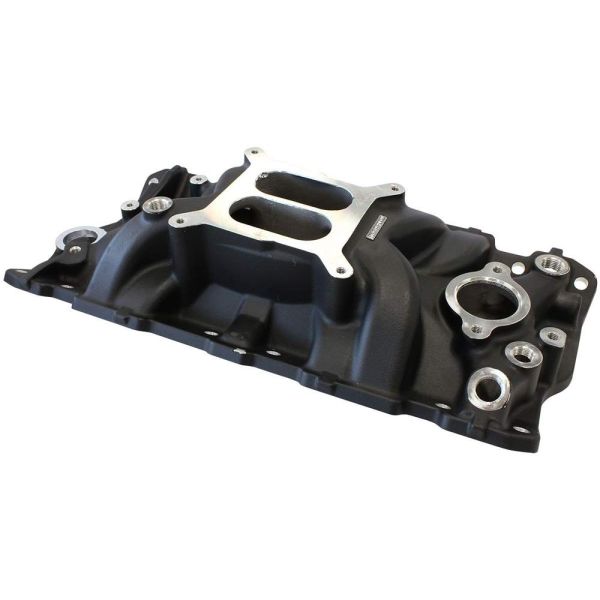

Get the maximum power from your carburetted engine with this Street Small Block Chevy carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today's market. Specifically designed for 262-400 cubic inch small-block Chevy engines operating in the 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.

• Fits Small Block Chevy 262-400 Cubic Inch Engines.

• Dual Plane Configuration.

• RPM operating range - 1500 to 6500.

• Black Finish.

Manifold Specifications

• Square bore carburettor pad
• Overall height (Carb pad to bottom of manifold) is 115mm
• Port Size: 1.16" x 1.70"
• Intake manifold gasket, Fel Pro 1205
• 5/16-18" carburettor studs (x4)
• 5/16-18" mounting holes (x2)
• 3/8-16" distributor hold down mounting hole (x1)
• 3/8-16" accessory mounting holes (x3)
• 1/2" NPT ports (x2)
• 3/8" NPT ports (x2)
