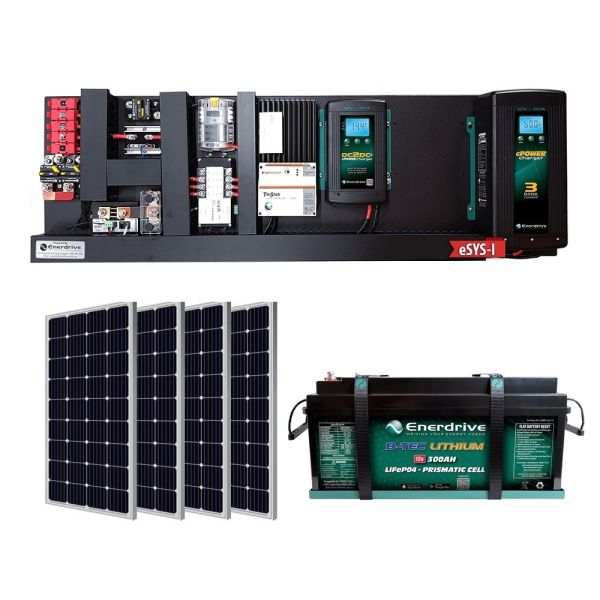

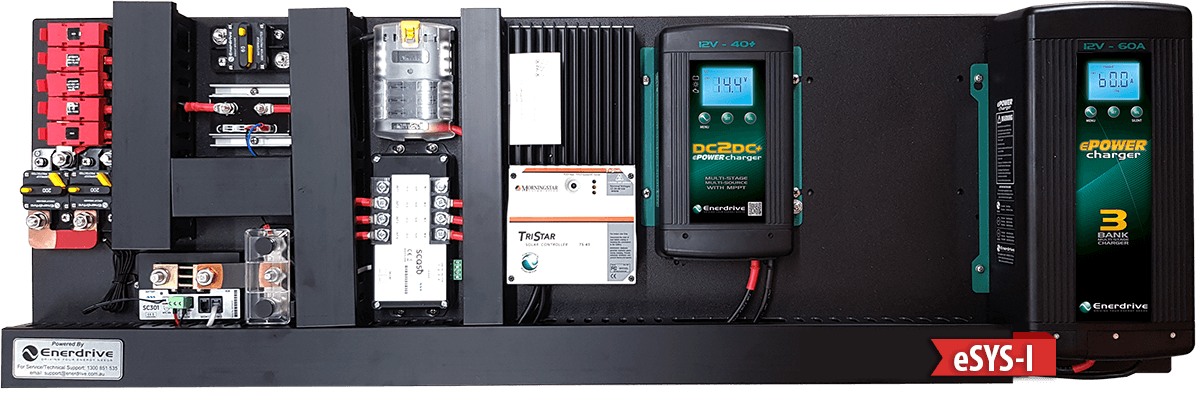

The ADU package from Enerdrive is for those who want a portable power system with unparalleled capabilities and no compromise design. Based around Enerdrive’s venerable eSYSTEM I kit, containing a powerful 40A DC to DC charger, 60A 240VAC charger, 60A Solar Controller with Simarine PICO battery monitor and 50A quadro shunt, along with all the ancillaries to go with it, housed pre-wired where possible on a tailor-made panel. The ADU package adds no less than 4 x 190-Watt solar panels and a 300Ah Lithium battery for a massive 720-Watt photovoltaic array with 3.6kWh of storage.

The ADU 300 package consists of:

• eSYSTEM I kit
  • ePOWER DC2DC+ 12V 40A charger
  • ePOWER 12V 60A AC charger
  • Simarine PICO Battery Monitor with 50A Quadro Shunt module for individual load monitoring
  • Morningstar TriStar 45A Solar Controller
• B-TEC G2 300Ah Lithium Battery
• Enerdrive 720W Solar Bundle
  • 4 x 190W Fixed Solar Panels

• Part Number: EN3DC40+

The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

• Part Number: EN31260

The Enerdrive ePOWER 60A Battery Charger is a fully automatic, "set and forget" charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

• Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
• Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
• Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
• Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.

• Part Number: SI-PICO-3

SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use. The IP67 casing of the main unit is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof). The 3.5-inch IPS LCD display is optically bonded with Anti-Reflective Gorilla Glass. The unique Real Time Battery Health algorithm ensures very precise battery state of charge and health measurements.

• Part Number: SI-SCQ50

Added functionality includes the ability to monitor in real time the consumption and generation of power in up to four channels. This is achieved with innovated combination of shunts and tank level modules which also means other vitals such as fluid levels and status can also be monitored using the dedicated Simarine smart phone app.

• Part Number: TS-45

The Morningstar TriStar is a three-function controller that provides reliable solar battery charging, load control or diversion regulation.

• Highest Reliability – Large heat sink and conservative design enables operating at full ratings to 45°C.
• More Information – Optional meter displays extensive system and controller information, automatic self-test and reset. Displays in 5 languages.
• Communications Capability – RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control.
• Fully Adjustable – DIP switch provides user with choice of 7 digital presets. Additional custom settings via RS-232.
• Extensive Electronic Protections – Fully protected against reverse polarity, short circuit, over current, high temperature and over voltage.

• Part Number:  SP-EN190W (x4)

• High conversion effiency: module efficiency up to 17.86% achieved through advanced cell technology
• Positive tolerance: tolerance of up to 0-5W deliveres higher output reliability
  High PID Resistance: advanced cell technology and qualified materials lead to high PID resistance
• Current Sorting process: system output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
• Extended wind & snow load tests: module certified to withstand extreme wind (2400 Pascal)  snow loads (5400 Pascal)


• Part Number: EPL-300BT-12V-G2

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The battery is also equipped with an internal Battery Management System that can monitor and optimise each prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

The G2 now incorporates a 'Built-In Reset Button' making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
