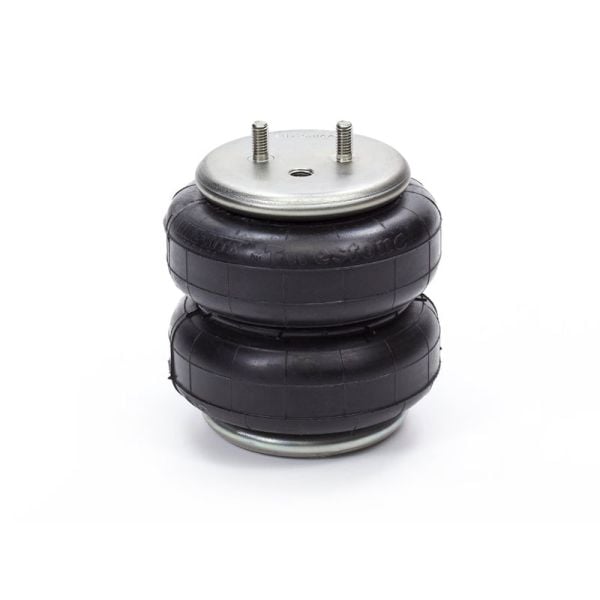

Designed to provide reliable supplementary load support, this airbag can support up to 690 kg at 100 psi. It offers a height range from 2.8 inches to 8.5 inches, helping maintain a more consistent vehicle ride height when carrying additional weight or towing.

The airbag features 3/8 inch UNC top and bottom threads for secure mounting, along with a 1/4 inch NPT top air connection for straightforward plumbing into a compatible air suspension system. With a maximum outside diameter of 6.6 inches, it is suited to applications where clearance and suspension travel must be carefully considered.

Check application compatibility with Airbag Man before ordering, as fitment may vary between vehicles and suspension configurations. Do not overtighten the fasteners, as excessive pressure can damage the airbag. Correct installation and suitable air pressure are essential for safe and dependable operation.

Features & Benefits

• High Load Support: Supports loads of up to 690 kg at 100 psi.
• Adjustable Height: Provides a height range from 2.8 inches to 8.5 inches.
• Stable Ride Height: Helps reduce suspension sag when carrying heavy loads.
• Secure Mounting: Includes 3/8 inch UNC threads at the top and bottom.
• Convenient Air Connection: Uses a 1/4 inch NPT top air fitting.
• Compact Clearance: Maximum outside diameter of 6.6 inches suits space-conscious installations.
