This Adaptiv Mini Interface works with your Audi to provide inputs for aftermarket front and rear cameras. The image is displayed on the OEM screen, whilst maintaining use of the vehicles original system. The kit comes supplied with one 105 degree wide angle surface mount aftermarket camera that can be utilised as a forward facing or rear facing camera.

In addition, the Adaptiv Mini Interface provides a HDMI input, allowing connection of a wide range of devices including smartphones. Whether you want to watch media whilst parked up or use Navigation apps like Waze or Google Maps, a HDMI port will mirror all of your content onto the OEM display with one simple connection.

• Please Note: Only suitable for listed vehicles with 6.5" colour centre display & Concert head unit (non MMI). For vehicles with OEM Aux input only.

• VEHICLE COMPATIBILITY: AUDI Q5 (see IMPORTANT NOTES below)
• INPUTS:
  • 2 x RCA CAMERA
  • 1 x HDMI

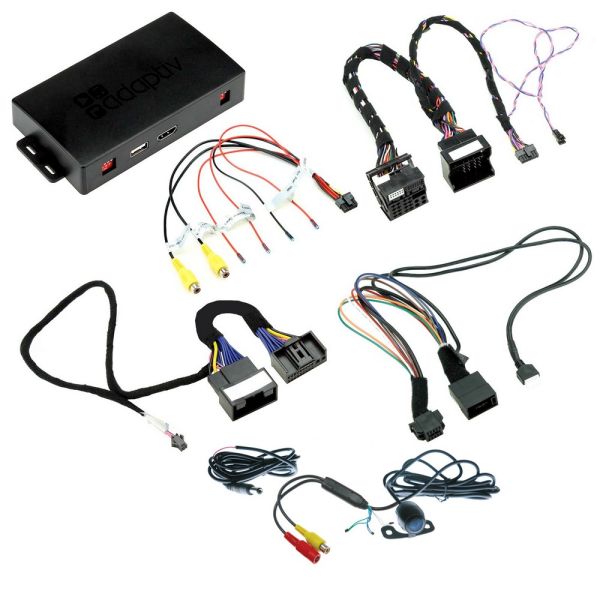

• INCLUSIONS:
  • ADAPTIV MINI MODULE
  • AFTERMARKET CAMERA
  • VEHICLE SPECIFIC T-HARNESS
  • RCA INPUT HARNESS
  • LVDS (LOW VOLTAGE DIFFERENTIAL SIGNAL CABLE)
• INCLUDED CAMERA SPECIFICATIONS:
  • MOUNT TYPE: SURFACE MOUNT BUTTERFLY
  • CAMERA IMAGE: SWITCHABLE FRONT / REAR VIEW
  • LENS ANGLE: 105 DEGREE
  • PARKING GRIDLINES: SWITCHABLE ON/OFF
  • IP RATING: IP67
  • VOLTAGE: 12V
  • MINIMUM ILLUMINATION: 0.2LUX
  • LENGTH OF VIDEO CABLE: 6M
  • DIMENSIONS (CAMERA & BRACKET): 25mm(H) x 38mm(W) x 30mm(L)
• IMPORTANT NOTES:
  • Only suitable for listed vehicles with 6.5" colour centre display & Concert head unit (non MMI). For vehicles with OEM Aux input only.
  • Visit aerpro.com to check vehicle compatibility
