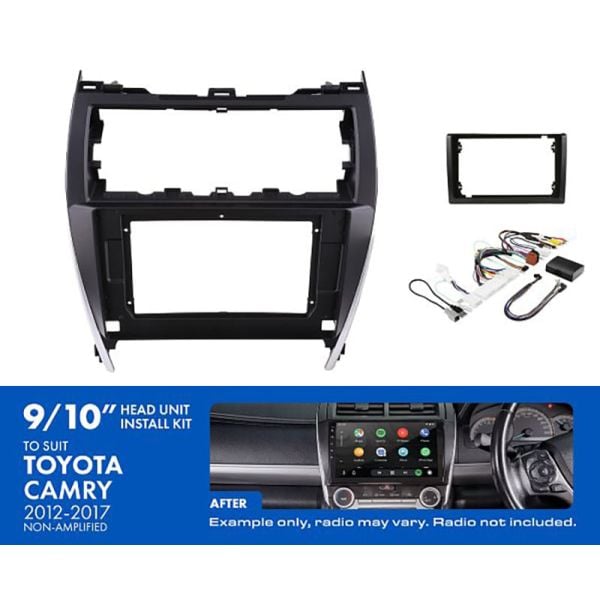

The Aerpro AKTO44 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid shaped radio into your Toyota Camry (2012-2017) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Compatible with the following 9/10" Trapezoid Head Units:

• ALPINE: INE-AW409S, INE-AX809
• KENWOOD: DMX80AXS
• PIONEER: DMH-AP6650BT
• AERPRO: AM9X, AM10X
• VARIOUS ANDROID HEAD UNITS

Specifications

Kit Inclusions:

• Matte Black and Silver Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Adaptor to allow for 9" and 10" radios to be installed
• Antenna Adaptor
• Camera Retention Adaptor
• Factory USB Retention Harness

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: Yes
• USB Input: Yes (Model Dependent)
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: No

Important Information:

• This kit is developed to suit universal trapezoid shaped radios. It will not suit standard DIN or double DIN sized radios
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Compatible Vehicles:

• Toyota Camry 2012 - 2017
