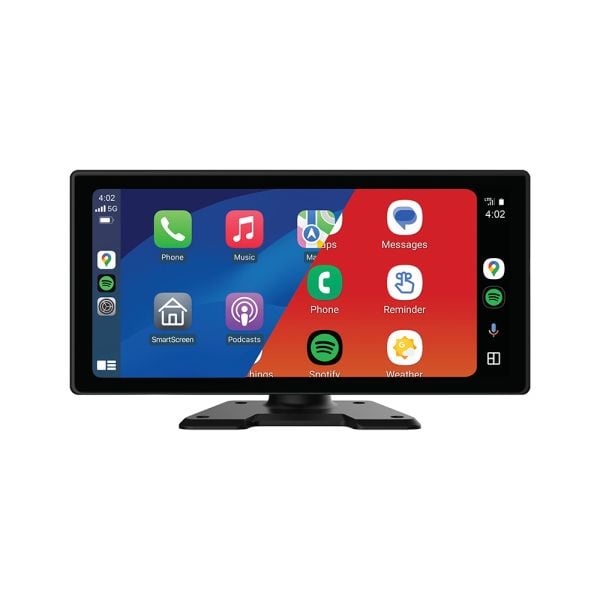

Introducing the AM10M04, the ultimate 10.36" AHD Quad View Smart Monitor designed to keep you connected and in control. Seamlessly integrate your smartphone using Wireless or Wired Apple CarPlay and Android Auto, transforming this monitor into your all-in-one infotainment hub. Access your favourite apps, contacts, and navigation effortlessly through the user-friendly touchscreen, ensuring you stay focused on the road while enjoying the convenience of modern technology.

The AM10M04 is also a powerful safety tool, equipped with four AHD 1080P camera inputs that allow you to view up to four camera feeds simultaneously in real-time. This comprehensive view of your surroundings helps eliminate blind spots and enhances your awareness, making every drive safer and more informed. Whether navigating tight spots or cruising down the highway, this smart monitor delivers unmatched visibility and peace of mind.

Engineered with durability in mind, the AM10M04 features heavy-duty 4-pin connectors and an IP67-rated camera, built to perform in any weather condition. The high-resolution IPS touch screen and robust construction ensure reliable operation, no matter where your journey takes you.

Designed for easy installation with an adhesive mount and compatible with 12/24V DC systems, the AM10M04 is the perfect upgrade to enhance both safety and entertainment in your vehicle. Whether you drive a car, ute, 4WD, motorhome, van, or truck, the Aerpro AM10M04 ensures full visibility and control, making it an ideal choice for larger vehicles where safety is paramount.

Specifications:

• Display: 10.36" IPS Display
• Resolution: 1600 x 720
• Cameras Wired or Wireless: Wired
• Smartphone Connection: Wireless (Supports Apple CarPlay, Android Auto)
• Audio Output: Bluetooth, FM Transmitter, Built-in Speaker
• Compatibility: Suits 720p and 1080p AHD Cameras (See additional information below)
• Video System: PAL/NTSC Auto
• Video Inputs: 4
• Video Triggers: 3 (CH1 Priority)
• Display Modes:
  • Single Camera
  • Dual Camera
  • Quad Camera
  • Carplay Full Screen
  • Carplay Split Screen (1 Selectable Camera Channel Only)
• Monitor View: Normal / Reverse
• Guidelines: Selectable On/Off (CH2 Only)
• Audio: On board Speaker
• Power Supply: 11-30V (Hardwired)
• Dimensions (WxHxD):
  • Monitor: 265 x 131 x 68mm (Excluding Mount)
• Inclusions:
  • 10.36" IPS monitor AM10M04
  • 1 x Monitor Mount
  • 1 x 5m Monitor Cable
  • 1 x 10m Extension Cable
• Additional Information:
  • This kit includes a monitor and a single camera only, additional cameras are sold separately (Model: AVC0)
  • The AVM10M04 can utilise the wide range of Aerpro AHD Cameras to complete your reverse safety system.
  • This monitor accepts 720P HD and 1080P AHD cameras but they need to be consistent. You cannot use a combination of 720P and 1080P AHD cameras.

Important Information:

• The term Wireless refers to the smartphone connection. The display requires connection to the vehicle power (hardwired). The reverse camera requires connection to the display and a reverse trigger in the vehicle.
• While this product is compatible for use with Apple CarPlay and AirPlay, it is not made or endorsed by Apple. Apple, CarPlay and AirPlay are trademarks of Apple Inc.
• While this product is compatible for use with Android Auto and Mirror Cast, it is not made or endorsed by Google Inc. Android Auto and Mirror Cast are trademarks of Google Inc.
• While this product is compatible for use with Bluetooth, it is not made or endorsed by Bluetooth SIG Inc.
• Other trademarks and trade names are those of their respective owners.
• Compatible smartphone required to enable smartphone connectivity features, smartphone not included.
• Optional reverse camera available, AVC0, sold separately.
• Design and specifications are subject to change without notice.
