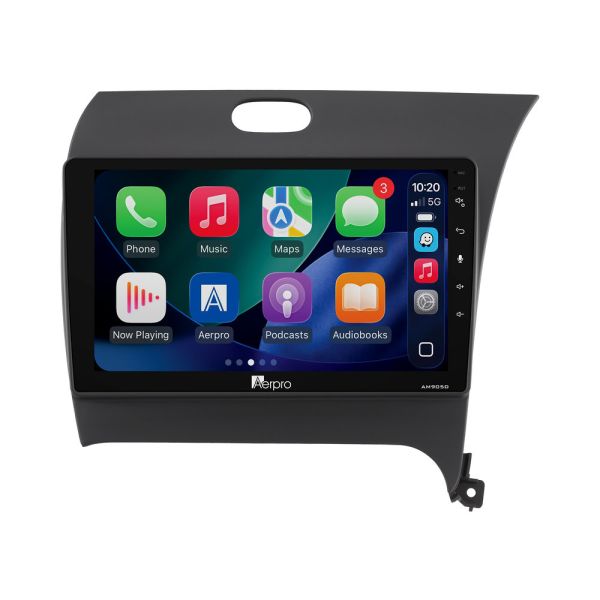

The Aerpro AMCHY27 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Kia Cerato 2013-2018 YD, variants with factory navigation and no CD player. Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMCHY27 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, parking tones, access to the vehicle menu and the factory reverse camera (if equipped).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits variants with factory navigation with no CD player.
• This kit includes an Infolink Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
• This head unit is sold as a kit which includes:
  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Infolink Interface Harness
  • USB Adaptor
  • Antenna Adaptor

Specifications:AMCHY27 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Infolink Harness
  • Antenna Adaptor
  • Camera Retention Adaptor
• Vehicle Feature Retention:
  • Vehicle menus: Yes
  • OEM amplifier: Yes
  • OEM reverse camera: Yes
  • OEM AUX input: Yes
  • OEM USB input: Yes
  • OEM antenna: Yes

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive
• OS System: Linux
• DIN Size: Fixed Screen Style (Trapezoid)
• Power Output:
  • MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• Device Ports:
  • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function - 5V / 1.5A
  • USB2 (Rear): Media with Charging Function - 5V / 1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Output: Yes (Two)
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile: HFP 1.6 (HD Voice)
• Tuner:
  • DAB: Yes
  • AM/FM (# of Presets): AM 12 / FM 18
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 522-1710KHz (9KHz Step)
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 5 Channel - 3 Pair (Front / Rear / Subwoofer)
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
• Inclusions:
  • 9" Fixed Headunit (Trapezoid)
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits variants with factory navigation with no CD player.
• This kit includes an Infolink Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
