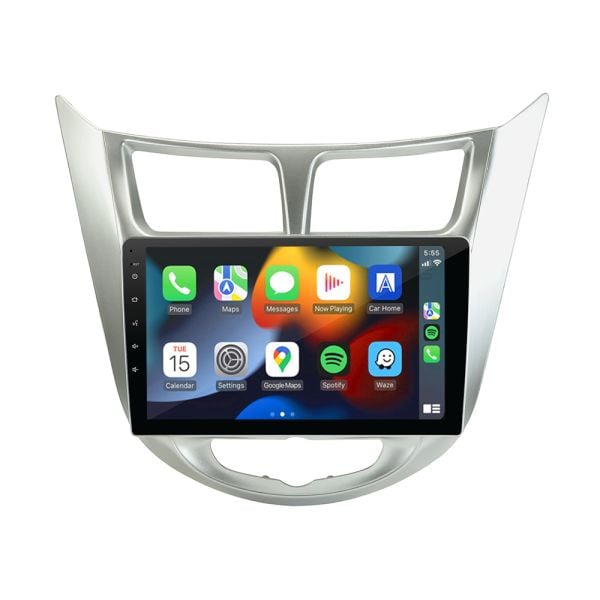

AMHY23 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • AM9X Multimedia Receiver
  • Silver Facia Kit
  • Steering Wheel Control Interface Harness (includes camera retention)
  • USB Retention Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (if equipped, model dependent)
  • AUX Input: No
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu: N/A
  • Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB 1 (Rear) Playback Formats: CP,AA & Media
  • USB 2 (Rear) Playback Formats: Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO / SWC Plug
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included
