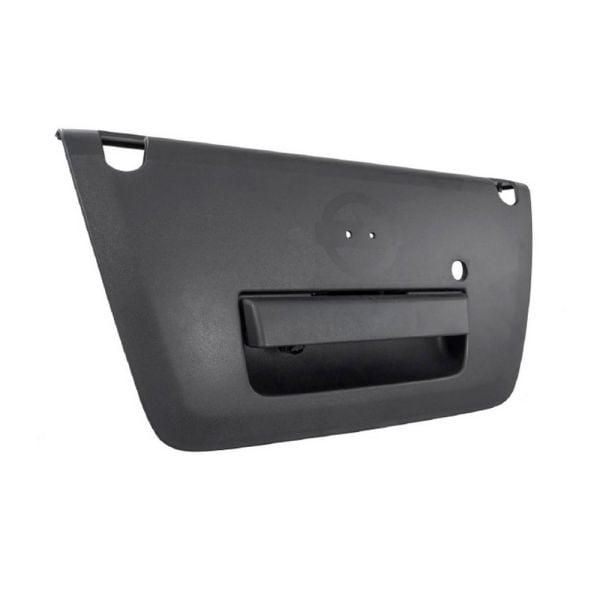

The Gator G156V is a vehicle specific reverse camera built for your Nissan Navara D40 Ute. The tailgate handle replacement design provides a discreet installation solution without the need to drill any additional holes into the vehicle and since it's custom-built, you can keep the factory lock so there's no need for extra keys.

The G156V camera has a wide 150 degree field of view that minimises blindspots and provides a clear view at the rear of the vehicle. The camera can be used as a reverse camera or rear-view camera thanks to mirror image and parking guidelines options that can be adjusted at time of installation. It will withstand the harsh environment thanks to its IP68 rating and its operating temperature range of -30 degree to 75 degrees Celsius.

The Gator G156V is the perfect reverse camera solution for Nissan Navara D40 models.

Features:

• Designed to replace the factory tailgate handle providing a discreet and professional rear camera solution
• No additional holes need to be drilled into the vehicle and keeps the original tailgate lock
• High quality image sensor produces clear images and enhanced low light performance
• 150 Degree field of view minimises blind spots at the rear of the vehicle
• IP68 Rating and wide operating temperature range makes it suitable for use in the harsh Australian conditions
• Mirror image and parking guideline option allows camera to be utilised as a reverse camera or rear view camera, must be set at time of installation
• 8m extension cable length to run between the front and back of the vehicle
• PAL compatible with RCA connection makes it suitable for use with all aftermarket display monitors

Specs:

• CAMERA TYPE: REVERSE / REAR VIEW (SWITCHABLE AT INSTALLATIONSEE NOTES BELOW)
• IMAGE SENSOR: ¼”
• PAL/NTSC: PAL
• LENS ANGLE: 150°
• OPERATING VOLTAGE: 12V
• IP RATING: IP68
• LUX RATING: 0.2 LUX
• INCLUSIONS:
  • CAMERA IN TAILGATE HANDLE HOUSING
  • 8M CAMERA EXTENSION CABLE
  • INSTRUCTIONS
• NOTES:
  • Parking guidelines are set to ON as default, to remove parking guidelines cut the GREEN loop on the camera cable at time of installation.
  • Normal image is set to ON as default, to MIRROR the image cut the WHITE loop on the camera cable at time of installation.

Vehicles known to work with this product:

• Nissan Navara 2007-2015 D40
