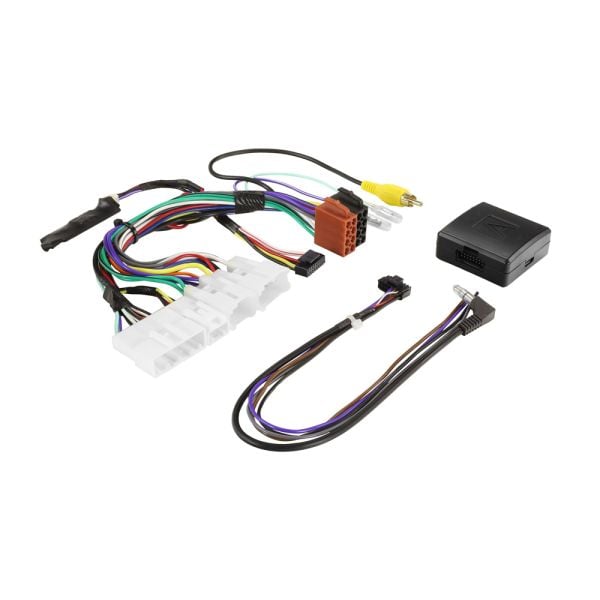

The Aerpro SWSU14C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Subaru vehicles, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface provides various outputs including Reverse Trigger and Park Brake. The interface also retains the OEM reverse camera (if equipped) when connected to compatible aftermarket headunits.

• Please Note:
  • Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
  • Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
  • Retains the OEM Reverse Camera (if fitted to the vehicle) and enables it to display on compatible aftermarket AV headunits (with an RCA camera input).

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
• Retains OEM Reverse Camera (if equipped) when connected to a compatible aftermarket AV headunit
• Provides output feeds for park brake and reverse gear
• Fitted with a vehicle specific plug, no cutting of wires required
• Optional button remapping available to customise your steering control button configuration (requires programming)
• Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (sold separately)

• INTERFACE TYPE: ANALOGUE
• PATCH LEAD TYPE: SW
• PHONE BUTTON COMPATIBILITY: YES
• VOICE ASSISTANT BUTTON SUPPORT: YES
• OUTPUTS:
  • REVERSE TRIGGER: YES (PURPLE)
  • PARK BRAKE: YES (GREEN)
  • SPEED PULSE: NO
  • ILLUMINATION: NO
  • AMP REMOTE: NO
  • TELEPHONE MUTE: NO
• OTHER RETENTION:
  • OEM AMPLIFIED SYSTEM: NO
  • OEM AV SOCKET: YES
• NOTES:
  • Aftermarket headunit must be SWC compatible.
  • Custom button remapping available, requires USB-C cable (sold separately) click here for remapping instructions
  • Retains the OEM Reverse Camera (if fitted to the vehicle) and enables it to display on compatible aftermarket AV headunits (with an RCA camera input).
  • Disregard 5 pin Camera plug if not present in vehicle as camera signal is also wired though main plug.
