Ultimate Pro Audio Test Kit

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution.

The Complete Test Tool Solution

Setup your aftermarket amplifier, find the correct speaker signals from your audio system and tune your vehicle audio system to the maximum performance are just some of the things you can do with the DM-RTA Pro Kit from AudioControl.

Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface.

Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl's DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.

Measure With Accuracy

An excellent entry-level microphone for your DM-RTA and the official replacement calibrated microphone for all models of the SA-305X and the Iasys. Models include the SA-3050, SA-3050A, SA-3051, SA-3052, SA-3052A, SA-3055, A-3056, Iasys and Iasys HT.

This is a back electret measurement microphone with calibrated internal preamp. Maximum SPL is 136 dB. Ships with 20 foot XLR mic cable.

Listen to your vehicles audio system, test speaker acoustic phasing and

Smartphone & Tablet Connectivity

Control, setup and tune your vehicle using the DM-RTA from anywhere in the vehicle with the included BT-24 Bluetooth Module. Once plugged into the DM-RTA interface, it allows full control of your RTA from either Android or iOS devices with a Bluetooth connection.

Accessories Plus

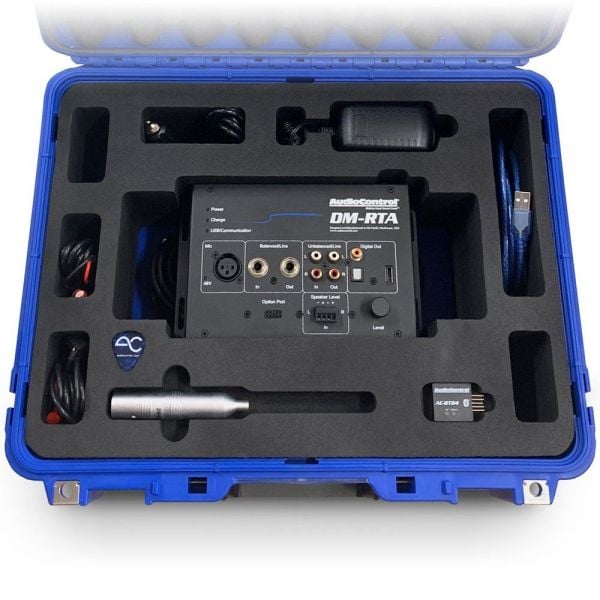

Nestled snuggly in the included fetching blue hard case, you will find

• 1x DM-RTA
• 1x AC Power Supply
• 1x 12V DC Power Supplies
• 1x AC-BT24 Bluetooth Adaptor
• 1x USB A to B Cable
• 1x USB A to A Cable
• 1x CM-10 Measurement Microphone
• 1x XLR Microphone Lead
• 1x RCA Input to Spring-Loaded Test Lead Cable
• 1x Speaker Level Input to Spring-Loaded Test Lead Cable

DM RTA Application

The DM-RTA isn't just an RTA.

Accessible from the DM-RTA app are five modules,

Including

• Voltage Meter,
• RTA (1/3, 1/6, and 1/12 octave),
• SPL Meter,
• Polarity Checker and
• a fully functional Oscilloscope.

Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level.

Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers.

This is the last test tool you'll ever need.

Specifications

DM-RTA

Inputs

• 1 x Balanced (Input Impedance 3.24kΩ)
• 1 x Unbalanced (Input Impedance 3.24kΩ)
• 1 x Microphone (Input Impedance 10kΩ)
• 1 x Speaker Level (Input Impedance 16.24kΩ)
• Max Low Level Input Voltage: 8 Vrms
• Max High Level Input Voltage: 40 Vrms

Outputs

• 1 x Balanced (Output Impedance: 51Ω)
• 1 x Unbalanced (Output Impedance: 51Ω)
• 1 x Coax Digital (Output Impedance: 75Ω)
• 1 x Toslink1 x USB

Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General

• Power Supply:
• Battery Life: ~5 Hours

Weights & Dimensions

• Dimensions: 8'W x 4.8'D x 2.4'H
• Weight: 2.6lbs (1.2kg)
• BT-24

Bluetooth

• Version: 4.2
• aptX HD Support: Yes
• Conection Type: UART

Outputs

• Dual Differential Class AB Output Stage

Performance

• Signal to Noise Ratio: 96dB
• Maximum Date Rate: 3Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on enviroment)

General

• Power Requirements: Provided b
