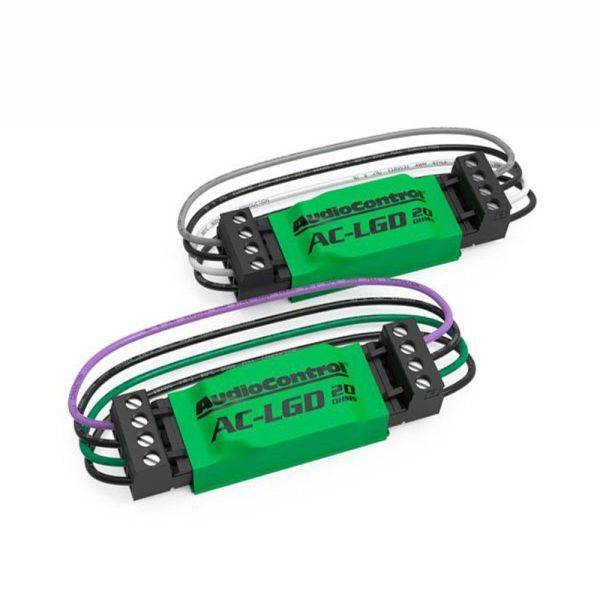

AudioControl Load Generating Device & Signal Stabilizer load generating device & signal stabilizer

IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS

Today's factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed.
The AC-LGD 20 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio.

The AC-LGD 20 come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors.
The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor.
Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.

General

• Maximum Input Voltage: 15 Vrms (50 watts)
• Input Impedance: 20 Ohms

Weights & Dimensions

• Dimensions (without wires/connectors): 2.3″L x 1.0″W x.06″H
• Dimensions (with wires/connectors): 9.75″L x 1.0″D x.06″H
• Weight (single LGD): 1.4oz (39g)

Specifications:
