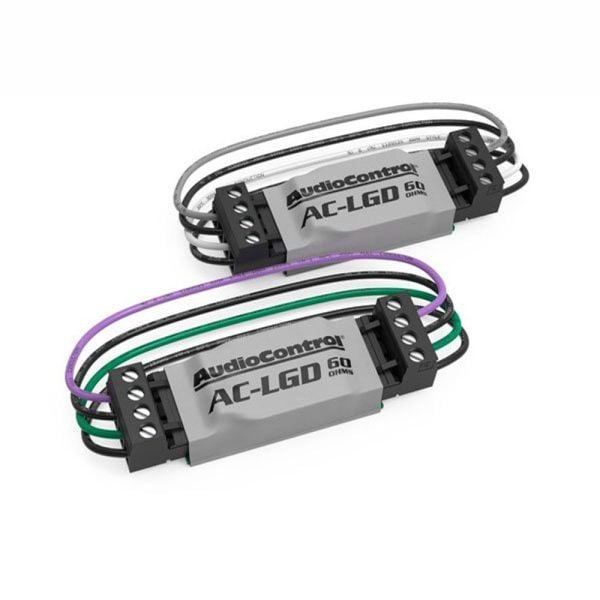

AudioControl Load Generating Device & Signal Stabilizer

IDEAL FOR OEM PREMIUM AMPLIFIED DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS

Today's factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed.
The AC-LGD 60 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio.

The AC-LGD 60 come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors.
The AC-LGD 60 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor.
Each AC-LGD 60 pair comes pre-wired with EIA standard wire colors for front and rear connections.

General

• Maximum Input Voltage: 25 Vrms (150 watts)
• Input Impedance: 60 Ohms

Weights & Dimensions

• Dimensions (without wires/connectors): 2.3"L x 1.0"W x.06"H
• Dimensions (with wires/connectors): 9.75"L x 1.0"D x.06"H
• Weight (single LGD): 1.4oz (39g)

Specifications:
