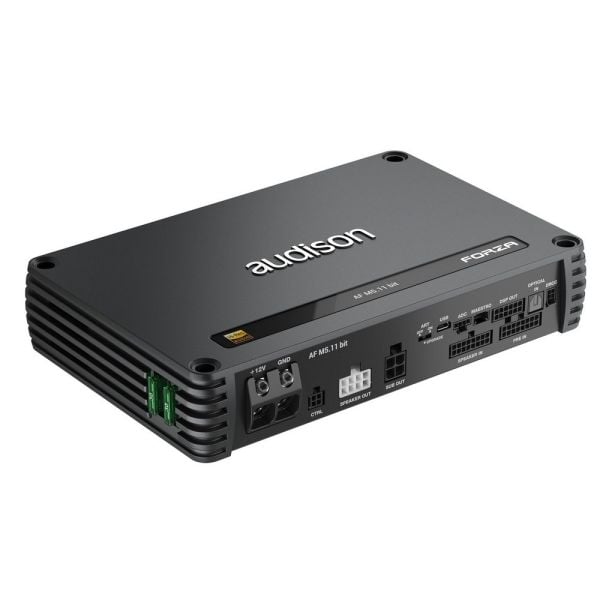

AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4?*, 150WP x 4 + 600W @2?* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4?*, guaranteeing flexible and powerful performance. Support for the Audison B-CONs Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Features:

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm reaching 82% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 11 output channels (5 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

Technologies:

• Next-generation bit Drive software platform developed for this family of products simplifies every control and function.
• Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
• The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
• The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
• Electrical Signal Analysis ensures proper integration and correction for each input channel.
• Enjoy the improved audio performance of the latest generation Audison D-Class technology.
• Maximum versatility thanks to the bridging option for each pair of channels.
• Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
• Quick I/O Configuration speeds up system definition and signal routing.
• When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
• iDatalink Maestro AR native support for a total integration with OEM infotainment.
• Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
• Automatically sums and reverses OEM equalization.
• Input delay compensation of time-delayed factory outputs prior to signal summing.
• Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
• Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
• 11 DSP-processed output channels for total control.
• 6 native pre-out channels for maximum versatility.
