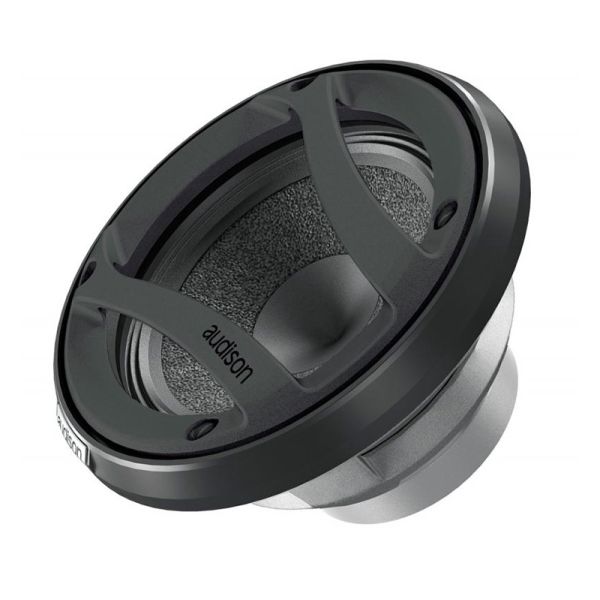

Audison Voce AV3.0 3" Midrange Speakers
$334.99
Description
The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations.
Grille included.
Technical Data
- Comp: Midrange
- Size: 70 mm (3")
- Power Handling: Hi-pass filtered 250 Hz @ 12 dB Oct.
100 W Peak Power - Impedance: 4 O
- Frequency Response: 200 / 14k Hz
- Sensitivity: 93 dB/Spl
- Magnet: Neodymium
- Dome: Cotton Fibre pressed paper with Light Damping treatment
Features
- Size: 70 mm
- Power Handling - Peak: 100 W
- Impedance: 4 Ohm
- Frequency Response: 200 14k Hz
- Magnet Material: NEODYMIUM
- Voice Coil : 20 mm
- Voice Coil Material: CCAP - COPPER CLAD ALLUMINIUM RIBBON
- Woofer Qes: 0,74
- Xmax: 2 mm
Electric-acoustic Specs:
- D: 66 mm
- Re: 3 Ohm
- Fs: 160 Hz
- Vas: 0.4 l
- Mms: 4.4 g
- Cms: 0.24 mm/N
- BL: 4.1 Tm
- Qms: 4.7
- Qts: 0.64
- Le Standard: 0.12 mH
- Le mH @ 10 kHz 0,07: 0.07
- Spl: 93 dB
General:
- Weight: 0.3 kg
Dimensions:
- Dimension A: 88 mm
- Dimension B: 73 mm
- Dimension C: 41 mm
- Dimension D: 38 mm
- Dimension E: 80 mm
- Dimension G: 18.5 mm
- Dimension H: 102 mm
More Information
| Pair or Single | Pair |
|---|---|
| Speaker Type | Raw driver (pair) |
| Speaker Setup | Midrange |
| Woofer Diameter (mm) | 88mm |
| Woofer Diameter (Inch) | 3 Inch |
| Mounting Diameter | 73mm |
| Woofer Mounting Depth | 38mm |
| Mid Diameter (Inch) | 3 Inch |
| Mid Diameter (mm) | 88mm |
| RMS Power | 50W |
| Impedance | 3 Ohm |
| Grilles Included | Included |
| Sensitivity (dB) | 93dB |
| Frequency Response | 250Hz - 14kHz |
| Tweeter Material | N/A |
| Tweeter Swivel | N/A |
| Tweeter Mount | N/A |
| Tweeter Level Adjustment | N/A |
| Mulit-Fit Midrange | No |
| Crossover Type | N/A |
| Bi-Amp Capable | N/A |
