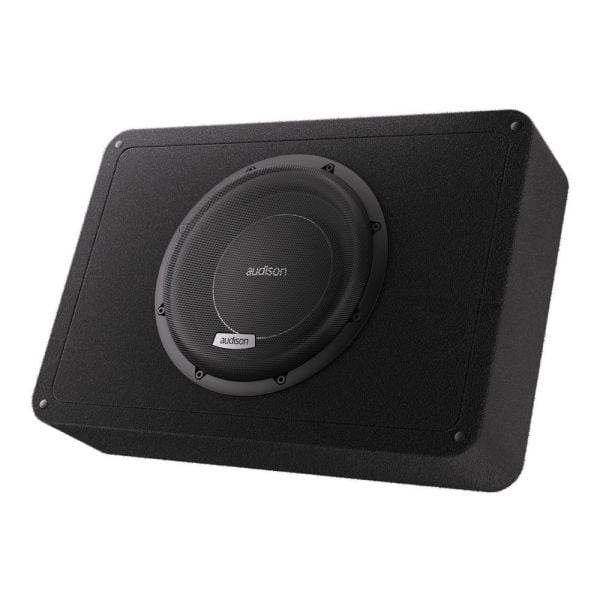

The AVBX 10 D4 II (Order code AVBX10D4) is the compact subwoofer enclosure of the VOCE II line, designed to bring high-end low-frequency performance into tight installation spaceswithout compromise.Its ultra-shallow sealed architecture is engineered to deliver tight, accurate and dynamic bass while preserving valuable in-vehicle space. Built from high-density 15 mm MDF with internal bracing, the enclosure ensures maximum rigidity and effective damping, eliminating unwanted resonances and coloration.The internal volume and damping are acoustically matched to the AV 10 D4 II subwoofer, which features a dual 4-ohm voice coil for greater wiring flexibility in high-power system configurations. This pairing guarantees seamless integration and controlled low-end response, even in space-limited applications.Thanks to the 2S dual-orientation design, the enclosure can be installed in Down-Firing or Up-Firing configuration, adapting to available space and acoustic goals. The Sub Smart Plug terminal combines Plug-&-Play convenience with traditional push connectors, ensuring fast, secure and high-current-ready wiring.The enclosures refined styling reflects the visual identity of the VOCE II speaker line, combining performance and elegance in a single, integrated solution. Compact, precise and ready to perform, the AVBX 10 D4 II is the ideal solution for adding impactful, controlled bass to OEM or custom installationswhere space is limited but expectations are high.

• Ultra-shallow sealed enclosure Engineered to maximize performance in minimal space, providing tight, articulate bass response while preserving valuable vehicle storage volume.
• High-density 15 mm wooden construction with internal bracing Built using robust MDF panels and strategic internal bracing, ensuring maximum structural rigidity and suppressing unwanted resonances for clean low-frequency output.
• 2S dual-orientation architecture Allows both Down-Firing and Up-Firing installation, offering installation flexibility depending on acoustic goals and available space.
• Sub Smart Plug (SSP) terminal with Plug-&-Play and push connectors Combines quick-disconnect functionality with traditional push terminals, enabling secure, efficient wiring and hassle-free maintenance.
• Acoustic design matched to VOCE II subwoofers Precisely tuned internal volume and damping ensure perfect integration with AV 10 D4 II driver for seamless low-frequency performance.
• Space-efficient footprint for OEM integration Designed to fit effortlessly in a wide range of vehicles, offering an OEM-friendly solution for discreet yet high-performance bass enhancement.
• Refined, minimalist styling consistent with VOCE II design language Combines functionality with elegance, matching the VOCE II speaker aesthetic for a cohesive system appearance.
• Rigid enclosure damping for accurate transient response Minimizes box resonances and coloration, ensuring accurate reproduction of kick drums, basslines and low-frequency effects with minimal distortion.
• High-current connectivity support Designed to accommodate high-gauge wiring for powerful system configurations without electrical bottlenecks.
• eID Technology Integrated Elettromedia eID system allows product registration, technical documentation access and extended warranty activation.

• Component Passive Sealed Sub Box
• Subwoofer size: 250mm (10")
• Power Handling
  • 110W peak
  • 550W continuous
• Impedance 4 + 4 Ohm
• Sub box size: 531 x 361 x 160mm
• Weight: 10.9kg
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Subwoofer Voice coil: 38.6mm
• Xmax: 16.8mm
