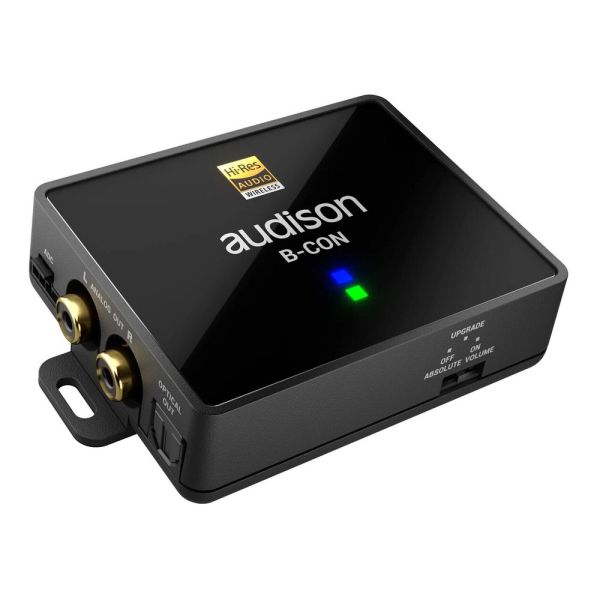

Experience true high-resolution wireless audio with B-CON II, the next-generation Audison Bluetooth ® receiver featuring LDAC streaming up to 24-bit/96 kHz. Its refined design, modern USB-C connectivity, and fully wireless updates via the B-CON Go App ensure effortless control without needing to connect to a DSP processor. Engineered for seamless system integration, B-CON II delivers outstanding sound quality and reliable performance in any car audio environment.

• POWER SUPPLY
  • Voltage: 5 " 24 VDC
  • Idling current: 40 mA
  • Remote IN: 5 " 24 VDC (3.5 mA)
• BLUETOOTH SPECIFICATIONS
  • Type: Bluetooth 5.0 + EDR
  • Codec: LDAC, AAC, SBC
  • Profile: Bluetooth A2DP 1.3, AVRCP 1.6
  • Max Paired Devices: 1
  • Max Distance: 10m
• INPUTS / OUTPUTS / CONTROLS
  • Digital Input: Optical S/PDIF (Max 24 bit/192 kHz)
  • Digital Output: Optical S/PDIF (Max 24 bit/96 kHz)
  • Analog Output: RCA Stereo (2 Vrms)
  • Aux Sel Wire: Yes (active +12V with streaming ON)
  • Master En Wire: Yes (active +12V with streaming OFF)
  • ADC Port: Yes
  • Mode Switch: Absolute Volume Upgrade Switch (User selectable)
  • Status LEDs: Yes
• ANALOG OUTPUT PERFORMANCE
  • Bandwidth (Max): 5 " 48 kHz
  • Output Level: 2 VRMS
  • Distortion " THD @ 1 kHz, 1 VRMS: 0.003%
  • S/N RATIO (A weighted): 107 dBA
• GENERAL REQUIREMENTS & CERTIFICATIONS
  • Operating Temp Range: -20 °C " +85 °C
  • Certifications: CE-RED, FCC, ISED, SRRC, RCM, MIC, WPC, ROHS, REACH 2.0
