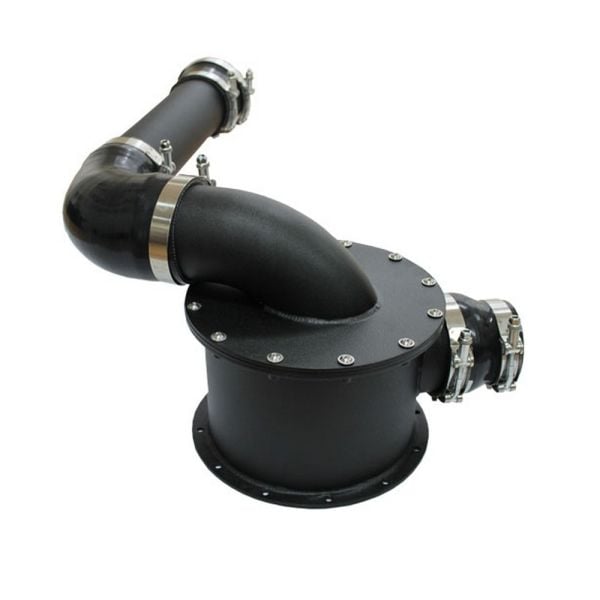

The ADS Filter element supplied in this air box is manufactured by using a 6 layer cotton technology.
The type and amount of cotton used in this filter is engineered to exceed stringent requirements for performance filtration. It will increase the effectiveness of the filter system and will remove contaminants. The filter is easy to clean and re-useable giving your vehicle optimum fuel economy and all-around performance.

• The air box is suitable for most 4×4 vehicles and compatible with full guard, quarter guard, factory fitted and aftermarket snorkels applications.
• Inlet and outlet sizing is 3.5inches (89MM)
• The filter box has been constructed with lightweight aluminium material. The top plate can be rotated to suit multiple directions therefor suitable for all different custom 4×4 air filtering applications.
• Please note when removing or refitting the top plate of the filter do so that a side to side cross action is used to lose or tightening the bolts. Ensure the top plate is secure but “DO NOT OVERTIGHTEN”
• Note: when fitting the filter element in the air box ensure the flat part of the filter faces the top of the air box. See below photo “A “below
• The air filter element can be washed in warm water, rinsed well, let to dry and refit to the air box..
• A one way drainage valve system has been added to the air box.

We would advise that the air box be checked after water crossing or after heavy rain to ensure that the box is dry and the filter is clean for maximum performance. Water could enter the air box filter from the silicone joiners or the snorkels if not correctly tighten.
