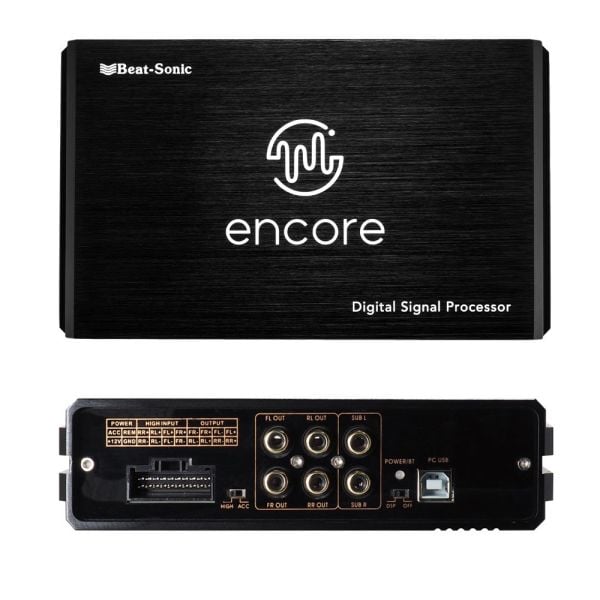

ENCORE DSP POWER AMPLIFIER KIT

Upgrade your car audio experience with the Encore X Car Audio DSP Amplifier from Beat-Sonic. Featuring built-in DSP (Digital Signal Processor) technology together with built-in 4ch amplifier.

The Encore X also features 6 x RCA outputs with 2 dedicated subwoofer pre-outs for system expansion, including powered subwoofer integration. For advanced users, the DSP software tool is available to download for free and can be used to change the audio system parameters to suit individual listening preferences.

FEATURES & BENEFITS

• Superior Sound Quality: Extracts the best sound from the factory radio and speakers using class AB amplifier and advanced DSP technology.
• Plug & Play Installation: No modifications and easy to install in less than an hour.
• Enhanced Power Output: More power than the factory radio.
• System Expansion: Dedicated subwoofer pre-outs and remote amp turn-on for adding a powered/active subwoofer.

NOTE: This amplifier does not come with a harness and requires the addition of a vehicle specific T-harness (part#'s EX-FD3/ EX-N1 / EX-T1/ EX-T3).

Encore Features

• Ultra-compact amplifier seamlessly installs to the factory stereo system.
• Significantly improves the sound quality with more clarity and powerful sound output between low, mid, and high ranges.
• Experience higher quality sound while keeping factory speakers and head unit.
• Future upgrade ready with RCA audio output for additional aftermarket amplifiers or underseat subwoofers.

Specifications

• Class AB Amplifier - 4 Channels
• Power Output - 45W x 4CH (4Ohm)
• Speaker Impedance - 4 Ohm
• Audio Inputs - 4 x Speaker High Level
• Audio Outputs - 4 x Speaker Output & 6 x RCA (2.2V P-P)
• DSP Resolution - 24bit
• Sampling Rate - 48kHz
• Crossover - Bypass, Bandpass, Lowpass, High-pass
• Frequency Range - 20 - 22kHz (31 bands)
• THD - 0.01%
• Operating Voltage - DC 10V - 15V
• Quiescent Current - 350mA
• Fuse - 15A
• Dimensions - 170mm (W) x 103mm (D) x 45mm (H)
• Weight - 625gm Excluding the T Harness
