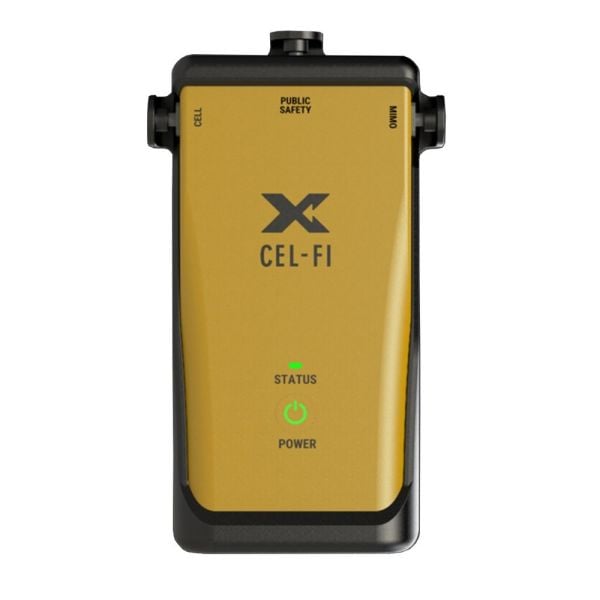

The CEL-FI COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimize CEL-FI cellular and public safety coverage systems. A convenient tool in a lightweight and portable package, it can be used globally to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.

Specifications:

• Weight [kg]: 0.75
• Depth [mm]: 41.3
• Height [mm]: 204
• Brand: Nextivity
• Width [mm]: 119
• Frequency MHz: 617-5000 MHz
• RF Connectors: SMA (female) on all ports
• Frequency Band: B1 - 2100MHz, B28L - 700MHz Lower, B28U - 700MHz Upper, B3 - 1800MHz, B40 - 2300MHz TDD, B5 - 850MHz, B7 - 2600MHz, B8 - 900MHz, N78 - 3500MHz TDD
• Battery: Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included)
• Charger: Included, with plug adapter types A, C, G & I
• Accuracy: +/- 2dB
• Charging: USB-C
• Antenna Ports: SMA Male (Three: Main, MIMO, LMR)
• Power Button: LED illuminated button
• LED Indicators: Three: Power, Status and Charging
• Bluetooth (LE Ver 4.2): Frequency: 2402 - 2480 MHz. Power: 0 dBm. Connects to Cel-Fi WAVE PRO App for UI
• WiFi Access Point: Software upgradeable; enabled only when a Software Upgrade is in progress, while charging.
