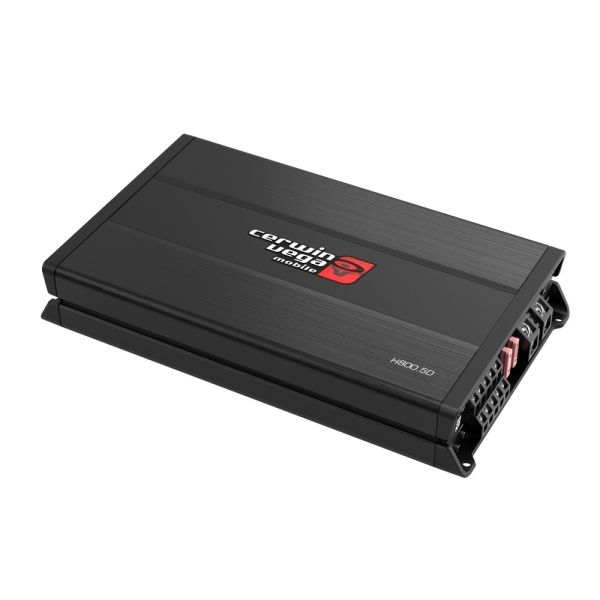

Cerwin Vega H800.5D HED Series 5 Channel Digital Amplifier
Description
HED - High Energy Design
HED, short for High Energy Design, are Cerwin Vega's mid-level speakers, amplifiers and subwoofers. The HED series are perfect for use when bang for buck is important, but you are prepared to pay a tiny bit more for superior build quality, materials and construction. For full range speakers that means higher grade tweeter domes made of silk rather than mylar and discrete crossovers that are designed to fit even the most confined spaces with ease. For subwoofers that means larger motor structures with higher flux density and higher power handling. For amplifiers that means more complete feature sets, superior circuit topologies and higher power outputs.
Cerwin Vega
Continuing its founding legacy as a world class innovator in the field of solid-state amplifiers, Cerwin Vega offers a properly diverse range of amplifiers to suit most every application and budget. Far from marketing a bunch of rebadged amplifiers made on product lines that are getting a bit long in the tooth, Cerwin Vega utilises the very latest class D topology to deliver unprecedented levels of quality, performance and power density. This includes properly modern all SMD circuit designs, the very latest digital output devices and astounding authority that belies their comparatively tiny footprints. With the Stroker, Stealth Bomber, Vega, Cerwin Vega Pro and Xtreme Energy Density you can be assured Cerwin Vega had an amplifier perfectly suited to your application.
Specifications:
| Configuration: | 5 Channel Amplifier |
| Topology: | Class D |
| Continuous Power Output: | 85W RMS x 4 + 180W x 1 @ 4-ohm 125W RMS x 4 + 300W RMS x 1 @ 2-ohm |
| Crossover Channels: | High/Low Pass 50 - 500Hz @ 12dB/Octave |
| Subsonic Filter: | 10 - 55Hz @ 12dB/Octave |
| Remote Subwoofer Control: | - |
| Dimensions: | 280 x 160 x 48.3mm |
Features
- Amplifier: 5 Channel
- RMS Power (1-ohm): N/A
- RMS Power(2-ohm): 125W x 4CH + 300W
- RMS Power (4-ohm): 85W x 4CH + 180W
- Topology: Full Range Class-D
- Frequency Response: 10-33KHz
- Power Supply: 12-14.4V
- Power Supply (Threshold): 8.4V-16.5V
- Idle Current: 1.25A
- Distortion - THD (1KHz@4-ohm): <0.3%
- Distortion - S/N Ratio (A weight @ 1W): >90dB
- Distortion - S/N Ratio (A weight @ FP): -88dBA
- Input Sensitivity Low: Wide Range Input Sensitivity
- Input Sensitivity High: 0.3 - 8.5V
- Input Impedance - Low Input Level: 22K-ohm
- Input Impedance - High Input Level: N/A
- Output Impedance: 2-ohm
- Damping Factor (50Hz@4-ohm): >100
- Bandwidth (-3dB): 10Hz-30KHz,10Hz-300Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: 50Hz-500Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 50Hz-500Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: 10-55Hz(SUB)
- FUSE Ratings - ATC: 40Ax2
- Dimension - Length x Width x Height - Inches(mm): 11.0" x 6.3" x 1.9" (279.5 x 160 x 48.3 mm)
More Information
| Channels | 5 Channel |
|---|---|
| RMS Power @ 4 Ohm | 85W x 4 or 250W x 2 + 180W x 1 |
| RMS Power @ 2 Ohm | 125W x 4 + 300W x 1 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | HP 50Hz-500Hz @ 12dB/oct |
| Crossover Channel 3/4 | HP 50Hz-500Hz @ 12dB/oct |
| Crossover Channel 5/6 | LP 50Hz-250Hz @ 24dB/oct |
| Subsonic Filter | 10Hz-55Hz @ 12dB/oct. |
| Bass Boost | 0-18dB @ 50Hz |
| Speaker Level Input | Yes (via RCA) |
| Auto Turn-On | Yes |
| Remote Sub Controller | Yes (Included) |
| Dimensions | 279.5 x 160 x 48mm |
