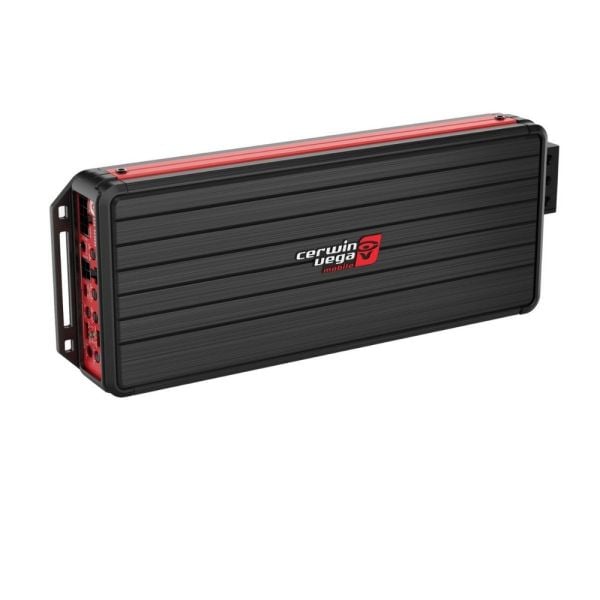

Cerwin Vega VCU85 Vega Series 5 Channel Digital Amplifier
Description
Vega
Positioned right in the middle of Cerwin Vega's range of products, the Vega series are engineered to strike the ideal balance between price and performance. Unique in so far as they exclusively feature the signature red surround now synonymous with Cerwin Vega speakers and subwoofer, the Vega series are instantly recognisable. If you are after a set of speakers or a subwoofer for your car or boat and want to enjoy the unmistakable performance that made Cerwin Vega so popular in professional and consumer markets then the Vega series has your name written all over it.
Cerwin Vega
Continuing its founding legacy as a world class innovator in the field of solid-state amplifiers, Cerwin Vega offers a properly diverse range of amplifiers to suit most every application and budget. Far from marketing a bunch of rebadged amplifiers made on product lines that are getting a bit long in the tooth, Cerwin Vega utilises the very latest class D topology to deliver unprecedented levels of quality, performance and power density. This includes properly modern all SMD circuit designs, the very latest digital output devices and astounding authority that belies their comparatively tiny footprints. With the Stroker, Stealth Bomber, Vega, Cerwin Vega Pro and Xtreme Energy Density you can be assured Cerwin Vega had an amplifier perfectly suited to your application.
Specifications:
| Configuration: | 5 Channel Amplifier |
| Topology: | Class D |
| Continuous Power Output: | 80W RMS x 4 + 200W RMS x 1 @ 4-ohm 150W RMS x 4 + 350W RMS x 1 @ 2-ohm |
| Crossover Channels: | High Pass 70Hz @ 12dB/Octave Low Pass 40 - 400Hz @ 12dB/Octave |
| Subsonic Filter: | - |
| Remote Subwoofer Control: | No |
| Dimensions: | 266 x 102 x 36mm |
Features
- Amplifier: 5 Channel
- RMS Power Rating: 950 W RMS
- MAX Power Rating: 1900 W MAX
- RMS Power(2-ohm): 150 W x 4 / 350 W x 1
- RMS Power (4-ohm): 80 W x 4 / 200 W x 1
- RMS Bridge (mono 1-ohm): N/A
- RMS Bridge (mono 2-ohm): N/A
- RMS Bridge (mono 4-ohm): 300 W x 2 / 200 W x 1
- Topology: Full-Range Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0VDC - 17.0VDC
- Idle Current: (0.7A)
- Distortion - THD (1KHz@4-ohm): (0.5%)
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity Low: 200mV - 10.0V
- Input Sensitivity High: 200mV - 10.0V
- Input Impedance - Low Input Level: 20 K-ohm
- Input Impedance - AUX Input Level: 20 K-ohm
- Output Impedance: 0.018 -ohm
- Damping Factor (50Hz@4-ohm): >70
- Bandwidth (-3dB): 10Hz-35Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: Flat or Fixed 70Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 60A
- Dimension - Length x Width x Height - Inches(mm): 10.45" x 4.02" x 1.4" (265.6 x 102 x 36 mm)
More Information
| Channels | 5 Channel |
|---|---|
| RMS Power @ 4 Ohm | 100W x 4 or 330W x 2 + 250W x 1 |
| RMS Power @ 2 Ohm | 165W x 4 + 375W x 1 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | HP 75Hz @ 12dB/oct |
| Crossover Channel 3/4 | HP 75Hz @ 12dB/oct |
| Crossover Channel 5/6 | LP 25Hz-250Hz @ 12dB/oct |
| Subsonic Filter | No |
| Bass Boost | No |
| Speaker Level Input | Yes |
| Auto Turn-On | Yes |
| Remote Sub Controller | No |
| Dimensions | 265.6 x 102 x 36mm |
