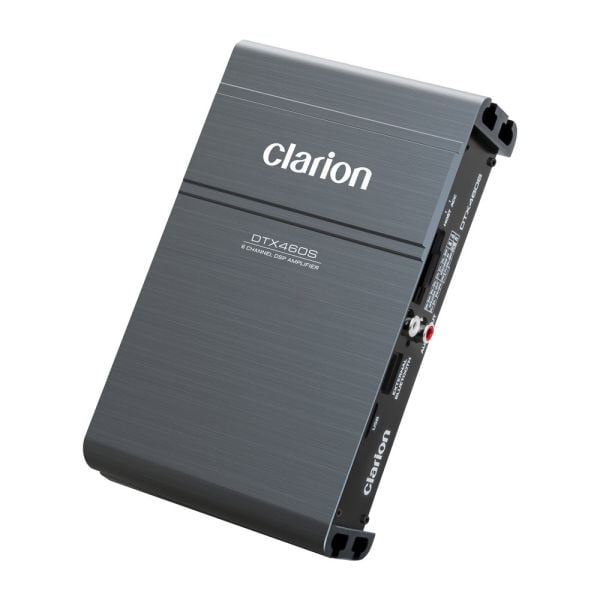

The Clarion DTX460S is a compact 6-channel DSP car amplifier designed for users who want precise sound control without overwhelming their vehicles space. With support for high-level inputs and RCA outputs, it fits seamlessly into factory or aftermarket audio systems. This unit delivers a peak power output of 50W across channels 1 to 4, ideal for clean, accurate sound amplification in standard speaker setups.

Equipped with a 31-band EQ, 24-bit/192kHz sampling, and time alignment capabilities, the DTX460S gives you full control over tuning and sound staging. The Class A/B amplifier design prioritizes sound quality and clarity, producing a low total harmonic distortion of just 0.015%. Whether you're upgrading a stock system or fine-tuning a custom build, this DSP amplifier offers the tools to shape your in-car audio exactly how you like it.

• 6-channel DSP amplifier with precision tuning for custom audio configurations
• Class A/B amplifier design for cleaner, more natural sound reproduction
• 31-band EQ for detailed tone adjustment across the full audio spectrum
• 192kHz/24-bit high-resolution processing ensures accurate audio signal handling
• Time alignment with adjustable output delay (up to 7.354ms) for improved staging
• 108dB signal-to-noise ratio delivers quiet backgrounds and dynamic range
• Compact form factor (185 x 121 x 43mm) makes installation flexible in tight spaces
• High-level input sensing for automatic turn-on with factory head units

• Inputs:
  • 4 CH high-level
• Outputs:
  • 6 CH RCA
• Amplifier Type: Class A/B
• Peak Power:
  • CH1-4: 50W
• Output Signal Equalizer:
  • 31 Band EQ
• Sampling Rate: 192kHz/24Bit
• Output Delay:
  • 0 - 7.354ms
• S/N Ratio (RCA): >108dB
• T.H.D: 0.015%
• Frequency Response: 20Hz - 20kHz
• Working Voltage: DC 9V-16V
• Remote Input: High Level Sense, Acc Start
• Weight:
• Dimensions: 1854(L) x 121(W) x 43(H)mm
