Crystal DB477A Compact 80 Channel UHF CB Radio

Part No.
DB477A

Crystal DB477A Compact 80 Channel UHF CB Radio

Special Price $194.30 Regular Price $239.99
You Save 19% off RRP

We'll notify you if it becomes available.

Not sure if it Fits? Click "Parts Checker"

Parts Checker
Buy Now, Pay Later
4 payments of $48.58

Installation Available

Add to Wish List
Crystal DB477A Compact 80 Channel UHF CB Radio

Crystal DB477A Compact 80 Channel UHF CB Radio

Special Price $194.30 Regular Price $239.99
You Save 19% off RRP

Description

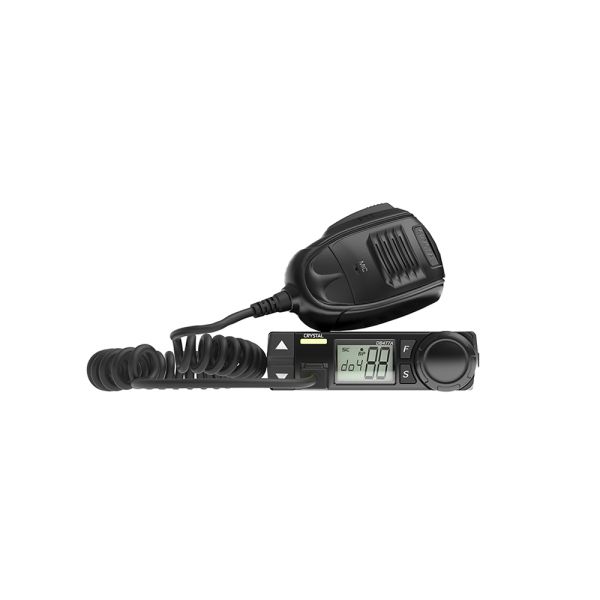

The Crystal Mobile DB477A 5W Compact in-car UHF CB Radio features a full aluminium die cast chassis, 80 narrow band channels, large multi colour display and all the other features you would expect from a top quality UHF.

The DB477A's compact size along with universal mounting bracket allows for easy installation in almost any vehicle, while its large multi colour display and rotary channel select features make the radio very simple to use.

The DB477A Capable of muting car stereo when receiving and the speaker output allow's the addition of an external speaker so even in the loudest of environments, you will never miss a call.

Specifications:

  • Full Aluminium Diecast Chassis
  • 5 Watt Power Output
  • 80 Narrow Band Channels
  • Large Multicolour Controls and Display (7 colours)
  • Duplex Range Extension
  • Mute Out (Capable of muting car stereo when receiving)
  • Channel Scanning
  • Automatic Squelch Control
  • Removable Handpiece/Microphone
  • Rotary Channel Selector
  • CTCSS Codes
  • External Speaker Ouput
  • Roger Beep
  • Call Tone

Warranty:

3 Year Warranty

Whats Included:

  • 1x DB477A UHF Radio
  • 1x DB477A Handpiece
  • 1x Handpiece Mounting Bracket (with mounting hardware)
  • 1x Mounting Bracket (with mounting hardware)
  • 1.2M Power Cable (attached to main unit) (with in-line fuse holder)
  • 2x 2AMP AGC fuses (1 in fuse holder, 1 spare)
  • 1x User Manual

Additional Info:

FREQUENCY RANGE: RX: 476.4250 ~ 477.4125MHz, TX: 476.4250 ~ 477.4125MHz
NUMBER OF CHANNELS: Max. 80
OPERATION MODE: 8K5φF3E
CHANNEL SPACING: 12.5kHz
ANTENNA IMPEDANCE: 50Ω
WORKING TEMPERATURE: –20℃ ~ 60℃
POWER SUPPLY: 13.8V DC±15% (11.7~15.8V)
GROUNDING METHOD: Negative ground
CURRENT DRAIN: Less than 150mA on standby, less than 350mA on receive, less than 1.5A on transmit
FREQUENCY STABILITY: ±2.5ppm
DIMENSIONS: (W x H x D) 112 x 30 x 155 mm (Dimensions are including protrusions)
WEIGHT: Approx. 0.8kg (including microphone)
TRANSMITTER RF POWER OUTPUT: 5Watts
SPURIOUS AND HARMONICS: 60dB
ADJACENT CHANNEL POWER: 60dB
FM NOISE: 40 dB
AUDIO DISTORTION: Less than 5%
RECEIVER SENSITIVITY EIA 12DB SINAD: 0.28μV
ADJACENT CHANNEL SELECTIVITY: 60dB
INTERMODULATION: 60dB
AUDIO OUTPUT IMPEDANCE: 8Ω
AUDIO OUTPUT AT 8Ω: 0.5W or higher (10% distortion)
