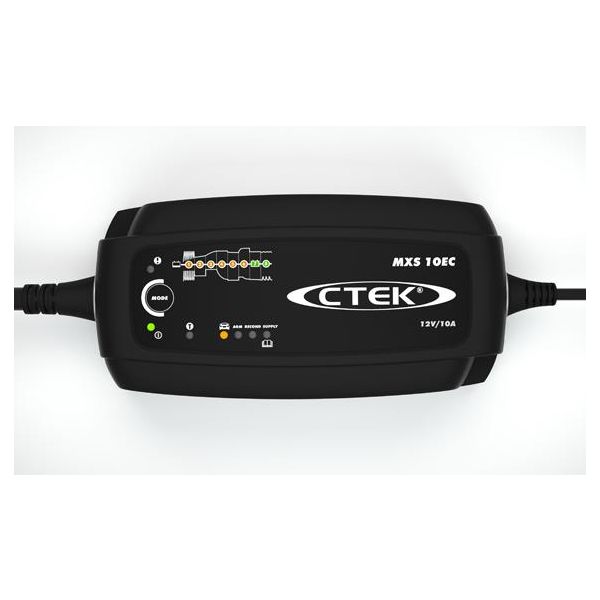

CTEK MXS10EC 12V 10A 8 Stage Battery Charger
The CTEK MXS 10EC is a fully automatic 8 step smart charger and battery support unit that delivers 10A to 12V batteries including AGM types from 20–200Ah up to 300Ah in maintenance mode.
TECHNOLOGY
- VOLT: 12V
- CHARGING CURRENT: 10A max
- CHARGER TYPE: 8 step, fully automatic charging cycle
- BATTERY CAPACITY: 20–200Ah, up to 300Ah for maintenance
FUNCTIONS
- Auto: Fully automatic for optimal charging
- 12V: For all lead-acid batteries
- Step 7: Fully charged battery
- Step 8: Maintenance charging
- Temperature sensor
- COLD/AGM: Charging in cold conditions and AGM batteries
- RECOND: Recondition of deeply discharged batteries
- SUPPLY: Use the charger as a power supply
- EXTENSIONS: 4 m cable
The CTEK MXS 10EC is a fully automatic 8 step smart charger and battery support unit that delivers 10A to 12V batteries including AGM types from 20–200Ah up to 300Ah in maintenance mode.
Designed for professional use, the MXS 10EC includes a wide range of features, including an automatic diagnostic function that tests whether a battery is able to take and hold a charge and a supply function that allows it to be used as a power supply to support vehicle electronics during sensitive battery changeovers. The MXS 10EC is ideal in the workshop not only for cars but for a range of other applications including boats and recreational vehicles.
Easily portable, the MXS10 EC is supplied with 4 metre extended charge cables and a protective silicon rubber bumper for maximum convenience and versatility.
The MXS 10EC is supplied with an optional temperature sensor, making it able to compensate for conditions and provide optimum charging whatever the weather. It is delivered with a 2 year warranty.
- Auto: Fully automatic for optimal charging
- 12V: For all lead-acid batteries
- Step 7: Fully charged battery
- Step 8: Maintenance charging
- Temperature sensor
- COLD/AGM: Charging in cold conditions and AGM batteries
- RECOND: Recondition of deeply discharged batteries
- SUPPLY: Use the charger as a power supply
- EXTENSIONS: 4 m cable
Volt | 12V |
Rated Voltage AC | 220–240VAC, 50–60Hz |
Min battery voltage | 2.0V |
Charging current | 10A max |
Current, mains | 1.0A rms (at full charging current) |
Back current drain | <1Ah/month |
Ripple | Less than 4% voltage |
Ambient temperature | -20°C to +50°C, output power is reduced automatically at high temperatures |
Charger type | 8 step, fully automatic charging cycle |
Battery types | All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL) |
Battery capacity | 20–200Ah, up to 300Ah for maintenance |
Dimensions | 197 x 93 x 49mm (L x W x H) |
Insulation class | IP65 |
Weight | 0.8kg |
