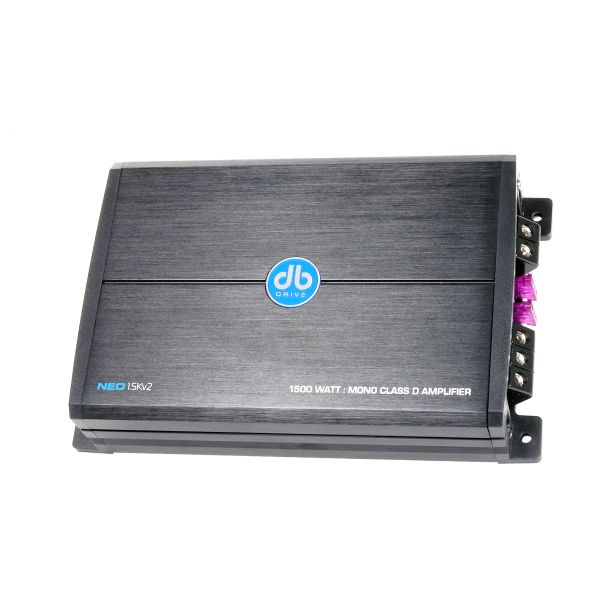

DB Drive NEO1.5Kv2 Mono Amp NEO1.5K Class D Monoblock Amplifier

Part No.
NEO1.5Kv2

DB Drive NEO1.5Kv2 Mono Amp NEO1.5K Class D Monoblock Amplifier

Special Price $376.00 Regular Price $399.00
You Save 6% off RRP

We'll notify you if it becomes available.

Not sure if it Fits? Click "Parts Checker"

Parts Checker
Buy Now, Pay Later
4 payments of $94.00

Installation Available

Add to Wish List
DB Drive NEO1.5Kv2 Mono Amp NEO1.5K Class D Monoblock Amplifier

DB Drive NEO1.5Kv2 Mono Amp NEO1.5K Class D Monoblock Amplifier

Special Price $376.00 Regular Price $399.00
You Save 6% off RRP

Description

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

  • Mono Class D Technology
  • 1Ω Mono load Capability
  • Amphibnious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable Low-pass crossover filter
  • Variable Sub-sonic Filter
  • Remote Dash Bass Control Included
  • Double Sided Circuit tablet
  • Compatible with any 1Ω Subwoofer load
Length (A)7.6" / (195mm)
Width (B)5.3" / (135mm)
Height (C)1.88" / (48mm)

GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling
1 x 350 Watts @ 2Ω
1 x 750 Watts @ 1Ω

PARAMETERS
THD (100Hz @ 1Ω)0.04%
Bandwidth (-3 dB)18Hz - 22KHz
Damping Factor (1KHz @ 4Ω)126
S/N ratio (as weighted @ 1 Volt)99db
Input Sensitivity0.20V - 9.0V RMS
Minimum Load Impedance1Ω
InputPre in RCA
Mono Low Pass filter slope12dB
Low Pass filter range30Hz ~ 150Hz
Sub - Sonic Filter slope12dB
Sub - Sonic Filter Range15Hz ~ 55Hz
