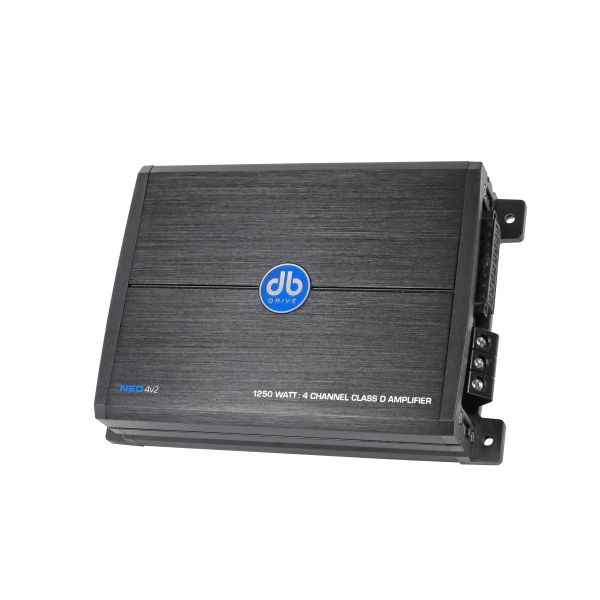

DB Drive NEO4v2 Class D 4 Channel Amplifier

Part No.
NEO4v2

DB Drive NEO4v2 Class D 4 Channel Amplifier

Special Price $376.00 Regular Price $399.00
You Save 6% off RRP

We'll notify you if it becomes available.

Not sure if it Fits? Click "Parts Checker"

Parts Checker
Buy Now, Pay Later
4 payments of $94.00

Installation Available

Add to Wish List
DB Drive NEO4v2 Class D 4 Channel Amplifier

DB Drive NEO4v2 Class D 4 Channel Amplifier

Special Price $376.00 Regular Price $399.00
You Save 6% off RRP

Description

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

  • 4 Channel Full Range Class D Technology
  • 2Ω Mono load Capability
  • Amphibnious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable 12dB High/Low-Pass Crossover Filters
  • Bridgeable Outputs @ 4Ω Load
  • Double Sided Circuit tablet
  • Compatible with any 4/2Ω Loudspeaker
Length (A)6.8" / (175mm)
Width (B)5.3" / (135mm)
Height (C)1.88" / (48mm)

GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling
4 x 250 Watts @ 2Ω

2 x 500 Watts @ 4Ω Bridged

4 x 125 Watts @ 4Ω

PARAMETERS
THD (100Hz @ 1Ω)0.04%
Bandwidth (-3 dB)18Hz - 22KHz
Damping Factor (1KHz @ 4Ω)100
S/N ratio (as weighted @ 1 Volt)99db
Input Sensitivity0.20V - 5.0V RMS
Minimum Load Impedance2Ω
InputPre in RCA
Channel 1-2 filter Range55Hz - 750Hz
Channel 3-4 filter Range55Hz - 750Hz
