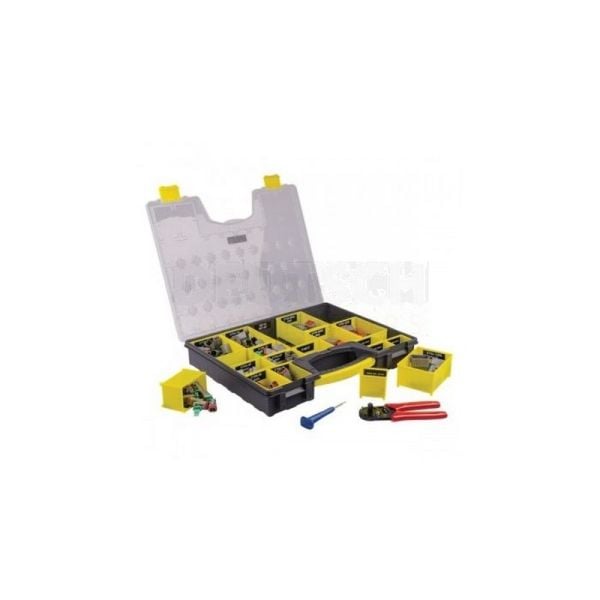

Deutsch DTKIT-WORKSHOP DT Series Connector Workshop Kit - 604 Piece with Tools

• 604 piece workshop kit containing assortments of DT Series connectors & contacts.
• Includes crimp tool and multi-use removal tool.
• Connectors environmentally sealed – IP68, IP6K9K, when installed to manufacturer's specifications.
• Solid contacts.
• Including wedgelocks.
• Removable compartment boxes.
• Contents clearly labelled

Kit Contents:

Receptacles and Wedge Locks

• 10x DT04-2P
• 10x DT04-3P
• 6x DT04-4P
• 6x DT04-6P
• 3x DT04-8PA
• 3x DT04-12PA

Plugs and Wedgelocks

• 10x DT06-2S
• 10x DT06-3S
• 6x DT06-4S
• 6x DT06-6S
• 3x DT06-8SA
• 3x DT06-12SA

Contacts and Sealing Plugs

• 50x 114017 Sealing Plugs
• 100x 0462-209-16141 Green Band Solid Pins
• 100x 0462-201-20141 Green Band Solid Sockets
• 100x 0460-202-16141 Solid Pins
• 100x 0460-201-16141 Solide Sockets

Tools

• 1x DET16
• 1x DET-RT

Technical Details:

• Housing: Thermoplastic
• Seal: Silicone Rubber
• Wedgelock: Thermoplastic
• Contact: Copper Alloy
• Contact Plating: Nickel
• Contact Size: 16
• Contact Rating: 13A @ 125°C
• Shock: 50G
• Vibration: 20G rms 10 - 2000Hz
• Approvals: 20mm Flame Test per Standard UL-94
• Ingress Protection: IP68, IP6K9K
• Operating Temperature: -55°C to 125°C

We supply a comprehensive range of Deutsch connector kits including Deutsch DT connector kits, Deutsch DTM connector kits, Deutsch HD10 Connector kits, Deutsch HD30 connector kits, Deutsch HDP20 connector kits, Deutsch wedge kits and Deutsch contact kits
