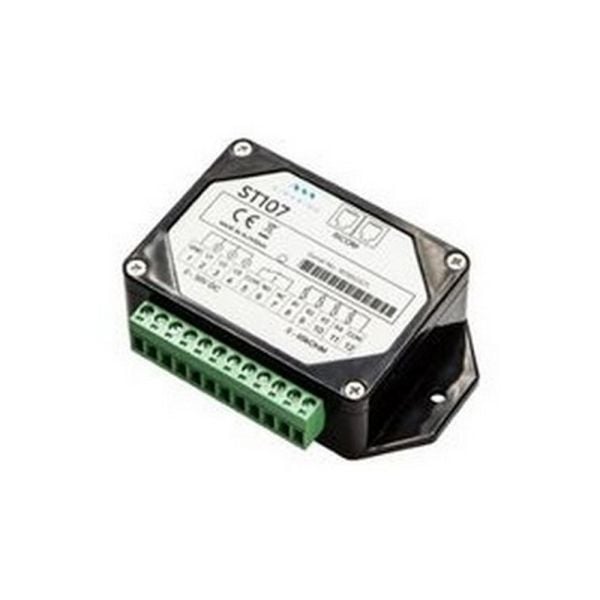

Fresh, Gray or Black - keep your waters under control with ST107 module.

ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring tank levels (up to 7x), battery voltages (up to 3x), temperatures (up to 4x).

Operating

• Power source voltage range 6 - 35 V
• Temperature range -20 - +70 °C
• Power consumption at 12 V
• Operating 3,5 mA
• Voltage measuring channels 3
• Resistive measuring channels 4
• Relay (monostable)
• Maximum Operating Current 1 A
• Maximum Common Input Voltage 6 - 30V

Voltage inputs

• Range 0 - 75 V
• Resolution 1 mV
• Accuracy ± 0,2 %
• Sampling rate 100 ms

Resistance inputs

• Range 0 Ohm - 65 kOhm
• Accuracy ± 3,0%

Connectivity Up to

• Voltage sensors (voltage drop/tank level) 3
• Resistive inputs (tank level/temperature) 4
• Relay Common Input (COM) 1
• Relay Output Normally Open (NO) 1
• Relay Output Normally Closed (NC) 1
• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 110 x 70 x 30 mm
• Battery Connection M 10 bolts
