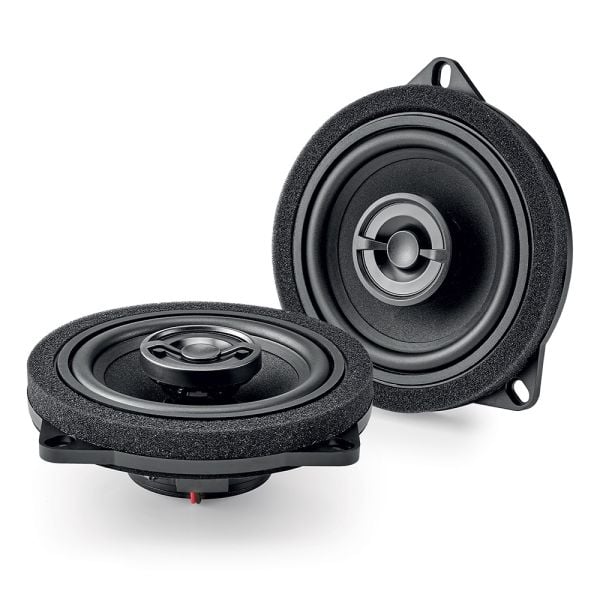

The IC BMW 100 v2 has been designed to elevate the audio experience in the latest generation BMW vehicles including the 3 Series, 4 Series, and i4. With its seamless integration and advanced Focal technologies, this Plug & Play solution delivers precise sound reproduction, ensuring an unparalleled in-car audio experience. For a fully customised installation, consider complementing it with the ICC centre channel and BMW subwoofers.

Focal Inside

The perfect sound for your vehicle

With more than 50 brands and 1,000 vehicle models covered, the Focal Inside range offers tailor-made configurations ensuring perfect compatibility.

• Replace your vehicle’s audio system easily without modifying the interior by choosing a Plug & Play hi‑fi solution.
• Add amplification and subwoofers for a richer sound experience and impactful bass.

Design

• Depth : 51 mm / 2 in
• Cut-Out diameter : 119.2 mm / 4.7 in
• Depth behind surface (Mounting depth) : 26 mm / 1 in

Sound Acoustics

• Product type: 2-way coaxial kit
• Membrane: Polyglass
• Coil diameter: 1"
• Tweeter: Inverted Dome Tweeter in Aluminum/Magnesium
• Filter: Integrated
• Frequency response (+/- 3dB): 80Hz - 23kHz
• Maximum power: 80 W
• Motor: Neodymium
• Nominal Impedance: 4 Ω
• Nominal power: 40 W RMS
• Sensitivity: 92.5 dB
• Surround material: Butyl

Polyglass membrane

Well-defined mids

The cone, the centerpiece of a loudspeaker, is at the heart of the acoustic engineers' research. Focal's exclusive Polyglass technology involves applying fine glass microbeads to a cellulose pulp cone. This process combines the excellent damping of paper with the rigidity of glass. The rigidity index is almost 10 times higher than that of polypropylene. Adjusting the mass-rigidity-damping ratio results in a remarkable linearity of the frequency response curve, right from the cone design stage. This innovation also significantly increases definition in the midrange.

Tweeter in al/mg

High-finesse treble

The shape and materials of the diaphragms are essential. For extremely refined treble, the engineers patented the inverted‑dome tweeter, a Focal signature. Shaping an inverted dome offers the advantage of low directivity and a small‑diameter voice coil, which makes it very light for improved acceleration. The materials also help bring together the key elements of a good loudspeaker: aluminum increases the rigidity of the dome and reduces distortion, while the addition of magnesium provides excellent damping.
