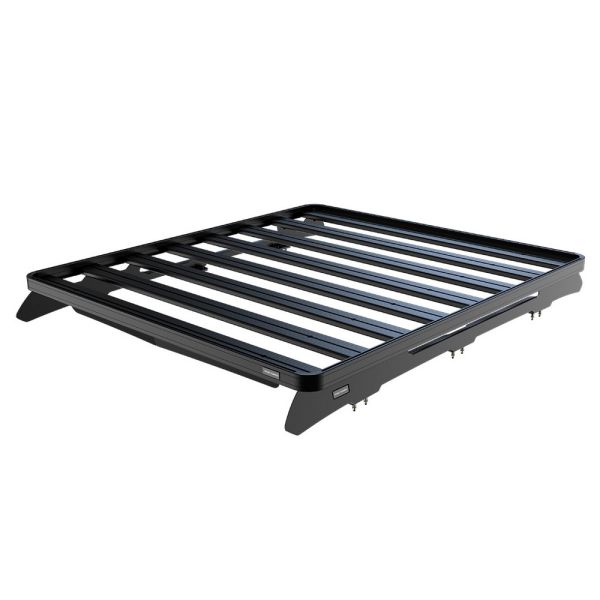

KRFF017T - Ford F-150 Crew Cab (2009-Current) Slimline II Roof Rack Kit - By Front Runner

Consisting of:

• 1 x FAFF004 - Ford F-150 Super Crew (2009-Current) Foot Rails - by Front Runner
• 1 x RRSTJ08 - Slimline II Tray - 1425mm(W) X 1560mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• high strength steel

Approximate Installed Weight: 26kg (58lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (17.7")
• Length 1750mm (69")
• Height 300mm (11.8")

• Shipping Weight:
• Weight 34kg (75lbs)
