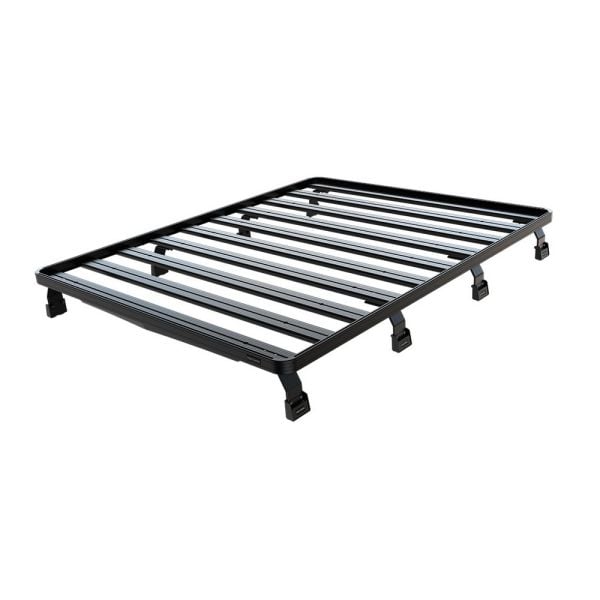

KRFF032T - Ford F-250-F-350 ReTrax XR 6'9" (1999-Current) Slimline II Load Bed Rack Kit - by Front Runner

Consisting of:

• 4x LASS027 - Leg Spacer 6mm (Pair)
• 4x LASS028 - Pick-Up Roll Top Leg Mount
• 1x RRSTP10 - SLII Tray - 1575mm(W)X1964mm(L)

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 40.05kg (88.3lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 440mm (17")
• Length: 1730mm (68")
• Height: 260mm (10")

Shipping Weight:

• Weight: 41kg (90lbs)
