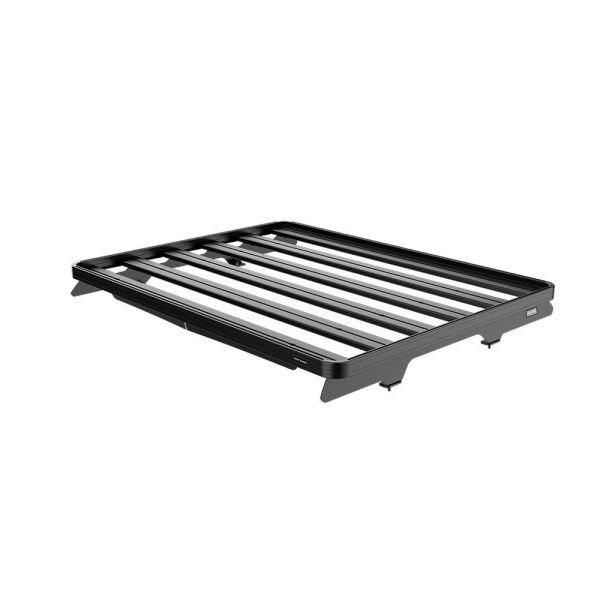

KRFT002T - Ford Transit Passenger Van XLT (2013-Current) Slimline II 1/2 Roof Rack Kit - by Front Runner

Consisting of:

• 1x FAFT001 - Ford Transit Passenger Van XLT (2013-Current) Foot Rails
• 1x RRSTM06 - SLII Tray - 1475mm(W)X1156mm(L)

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 31.96kg (70.46lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 450mm (18")
• Length: 1730mm (68")
• Height: 300mm (12")

Shipping Weight:

• Weight: 32.14kg (71lbs)
